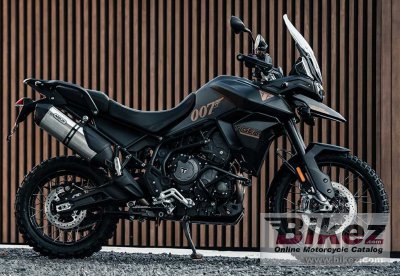

These are the known mechanical and performance specifications for your 2022 Triumph Tiger 900 Bond Edition.
Basic Specs
Year2022
MakeTriumph
ModelTriumph Tiger 900 Bond Edition
TypeEnduro / offroad
CostUS$ 20100. MSRP depends on country, taxes, accessories, etc.
Engine
Displacement888.0 ccm (54.19 cubic inches)
Type
DetailsIn-line three, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke78.0 x 61.9 mm (3.1 x 2.4 inches)
Valves/Cylinder4
FuelingInjection. Multi-point sequential electronic fuel injection
Ignition
ExhaustStainless steel 3-into-1 header system, side mounted stainless steel silencer
Lubrication
CoolingLiquid
Performance
Horespower93.9 HP (68.5 kW) @ 8750 RPM
Torque87.0 Nm (8.9 kgf-m or 64.2 ft.lbs) @ 7250 RPM
Top Speed196.0 km/h (121.8 mph)
Fuel Economy & Polution
Fuel Consumption5.20 litres/100 km (19.2 km/l or 45.23 mpg)
Fuel Capacity20.00 litres (5.28 US gallons)
Emissions120.6 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeTubular steel, bolt on subframe. Twin-sided, cast aluminium alloy swingarm.
Rake24.4 deg
Trail146 mm (5.7 inches)
Front SuspensionShowa 45mm upside down forks, manual preload, rebound damping and compression damping adjustmen
Front Travel240 mm (9.4 inches)
Rear SuspensionShowa rear suspension unit, manual preload and rebound damping adjustmen
Rear Travel230 mm (9.1 inches)
Seat
Seat Height850 mm (33.5 inches) If adjustable, lowest setting.
Alt. Seat Height870 mm (34.3 inches) If adjustable, highest setting.
Total Height1452 mm (57.2 inches)
Total Length
Total Width935 mm (36.8 inches)
Ground Clearance
Wheelbase1551 mm (61.1 inches)
Dry Weight201.0 kg (443.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-21
Rear Tire/Tyre150/70-R17
Front BrakesDouble disc. Brembo radial-type monobloc, with 4 pistons. Multi-mode ABS, Optimized Cornering ABS.
Front Brake Diameter325 mm (12.8 inches)
Rear BrakesSingle disc. Brembo with single pistons. Multi-mode ABS, Optimized cornering ABS.
Rear Brake Diameter255 mm (10.0 inches)
WheelsWire spoked
Comments
Windscreen. The Tiger 900 Rally Pro features in stunt sequences in the James Bond Film, No Time To Die.
