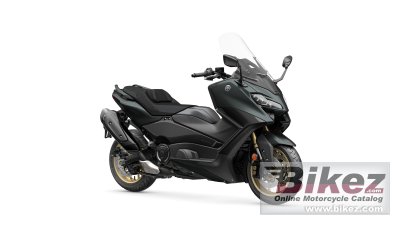

These are the known mechanical and performance specifications for your 2022 Yamaha TMAX Tech Max.
Basic Specs

Engine
Displacement562.0 ccm (34.29 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke70.0 x 73.0 mm (2.8 x 2.9 inches)
Valves/Cylinder2
FuelingInjection
IgnitionTCI
Exhaust
LubricationDry sump
CoolingLiquid
Performance
Horespower46.9 HP (34.3 kW) @ 7500 RPM
Torque55.7 Nm (5.7 kgf-m or 41.1 ft.lbs) @ 5250 RPM
Top Speed
Fuel Economy & Polution
Fuel Consumption4.80 litres/100 km (20.8 km/l or 49.00 mpg)
Fuel Capacity15.00 litres (3.96 US gallons)
Emissions111.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeDie-cast aluminium chassis
Rake
Trail
Front SuspensionTelescopic fork
Front Travel120 mm (4.7 inches)
Rear SuspensionSwingarm
Rear Travel117 mm (4.6 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1420 mm (55.9 inches)
Total Length2200 mm (86.6 inches)
Total Width765 mm (30.1 inches)
Ground Clearance125 mm (4.9 inches)
Wheelbase1575 mm (62.0 inches)
Dry Weight
Wet Weight220.0 kg (485.0 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-15
Rear Tire/Tyre160/60-15
Front BrakesDouble disc. 4-piston. Hydraulic. Optional ABS.
Front Brake Diameter267 mm (10.5 inches)
Rear BrakesSingle disc. Hydraulic. Optional ABS.
Rear Brake Diameter267 mm (10.5 inches)
Wheels
Comments
Electric screen. Cruise control. Heated grips and seat. Traction Control. Smart Key. ABS brakes ads 4 kg.
