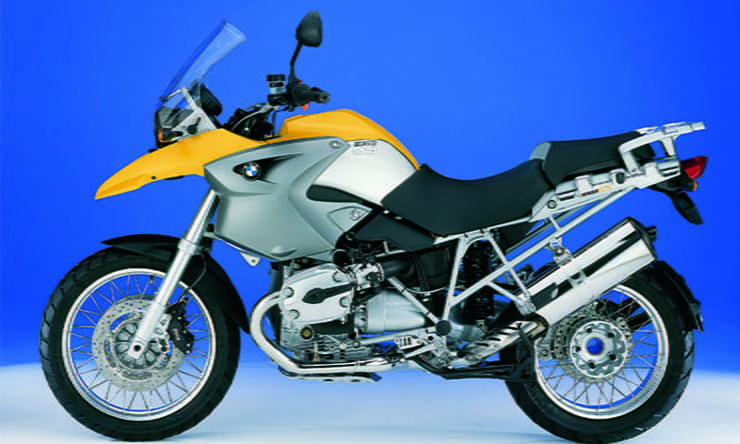

2004 BMW R 1200 GS Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 BMW R 1200 GS.

Basic Specs

Year2004
MakeBMW
ModelBMW R 1200 GS
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline

Performance

Horespower98.00 HP (71.5 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption4.50 litres/100 km (22.2 km/l or 52.27 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions104.4 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeThree-section composite frame consisting of front and rear section, load bearing engine.
Rake
Trail
Front SuspensionBMW Motorrad Telelever;stanchion diameter 41 mm, central spring strut, spring pre-load 9-times mechanically adjustable
Front Travel190 mm (7.5 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable to continuously variable levels by means of handwheel, rebound damping adjustable
Rear Travel200 mm (7.9 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height860 mm (33.9 inches) If adjustable, highest setting.
Total Height1,430 mm (56.3 inches)
Total Length2,210 mm (87.0 inches)
Total Width915 mm (36.0 inches)
Ground Clearance
Wheelbase1,641 mm (64.6 inches)
Dry Weight199.0 kg (438.7 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre110/80-ZR19
Rear Tire/Tyre150/70-ZR17
Front BrakesDouble disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 GS. This Allround model is powered by a Two cylinder boxer, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 98.00 HP (71.5 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 GS is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 110/80-ZR19 and the rear is 150/70-ZR17 . The entire package is supported by the frame, Three-section composite frame consisting of front and rear section, load bearing engine.. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The BMW R 1200 GS was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Special equipment BMW Motorrad Integral ABS (part-integral), disengageable
