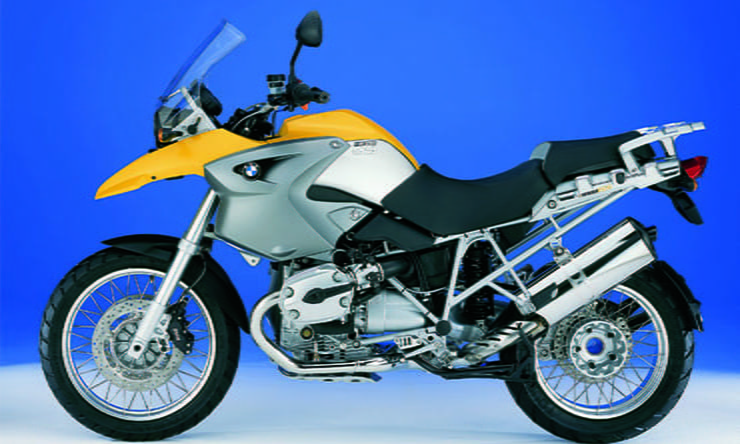

These are the known mechanical and performance specifications for your 2005 BMW R 1200 GS.
Basic Specs
Engine
Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/digital engine management: BMS-K with overrun fuel cut-off, dual ignition
Ignition
Exhaust
Lubrication
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle-disc dry clutch, hydraulically operated
Driveline
Performance
Horespower96.55 HP (70.5 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed200.0 km/h (124.3 mph)
Fuel Economy & Polution
Fuel Consumption4.50 litres/100 km (22.2 km/l or 52.27 mpg)
Fuel Capacity20.00 litres (5.28 gallons)
Emissions104.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeThree-section frame consisting of front and rear section, load bearing engine-gearbox unit
Rake27.1°
Trail110 mm (4.3 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel41 mm (1.6 inches)
Rear SuspensionDie-cast aluminium single-sided swinging arm with BMW Motorrad Paralever
Rear Travel135 mm (5.3 inches)
Seat
Seat Height840 mm (33.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,430 mm (56.3 inches)
Total Length2,210 mm (87.0 inches)
Total Width915 mm (36.0 inches)
Ground Clearance
Wheelbase1,520 mm (59.8 inches)
Dry Weight199.0 kg (438.7 pounds)
Wet Weight225.0 kg (496.0 pounds)
Wheels & Brakes
Front Tire/Tyre110/80-ZR19
Rear Tire/Tyre150/70-ZR17
Front BrakesDouble disc
Front Brake Diameter305 mm (12.0 inches)
Rear BrakesDouble disc
Rear Brake Diameter265 mm (10.4 inches)
Wheels
Comments
ABS brakes.
