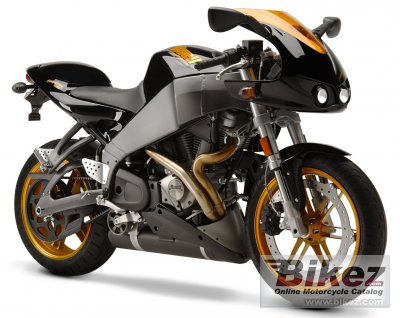

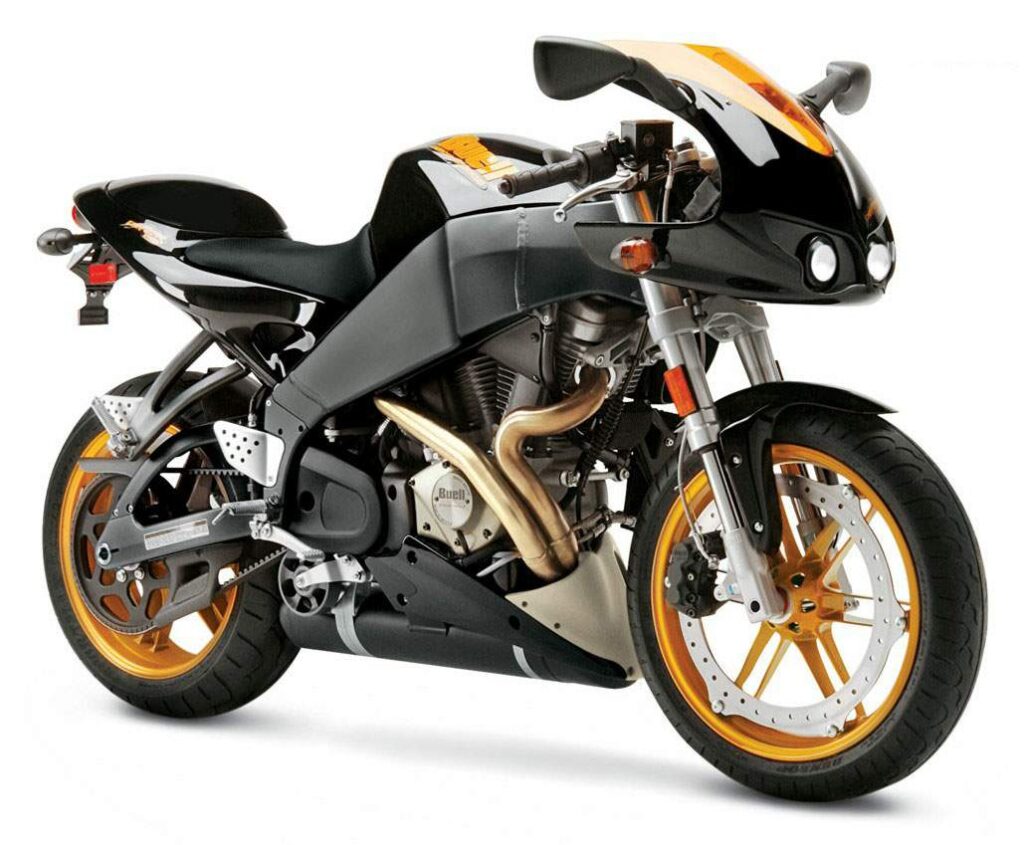

2004 Buell Firebolt XB12R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2004 Buell Firebolt XB12R.

Basic Specs

Year2004
MakeBuell
ModelBuell Firebolt XB12R
TypeSport
Cost

Engine

Displacement1203.00 ccm (73.41 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke88.9 x 96.8 mm (3.5 x 3.8 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveBelt
Clutch
Driveline

Performance

Horespower100.00 HP (73.0 kW)
Torque109.70 Nm (11.2 kgf-m or 80.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions

Chassis

Frame TypeAluminium Frame with Uniplanar powertrain vibration isolation system
Rake21.0°
Trail83 mm (3.3 inches)
Front SuspensionShowa inverted fork with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa shock absorber with adjustable compression damping, rebound damping and spring preload
Rear Travel127 mm (5.0 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,092 mm (43.0 inches)
Total Length1,924 mm (75.7 inches)
Total Width768 mm (30.2 inches)
Ground Clearance127 mm (5.0 inches)
Wheelbase1,320 mm (52.0 inches)
Dry Weight179.0 kg (394.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc
Front Brake Diameter375 mm (14.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Buell Firebolt XB12R. This Sport model is powered by a Twin, four-stroke engine with 1203.00 ccm (73.41 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection allowing this machine to produce its 100.00 HP (73.0 kW) horsepower and 109.70 Nm (11.2 kgf-m or 80.9 ft.lbs) torque. According to our records engine heat of the Buell Firebolt XB12R is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Aluminium Frame with Uniplanar powertrain vibration isolation system. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Buell Firebolt XB12R was launched in 2004, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
