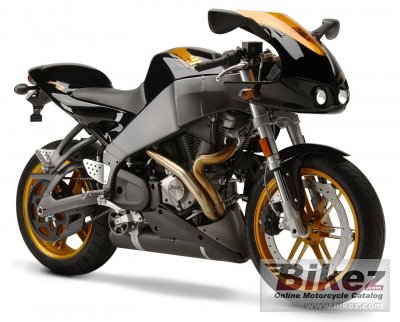

These are the known mechanical and performance specifications for your 2005 Buell Firebolt XB12R.
Basic Specs
Year2005
MakeBuell
ModelBuell Firebolt XB12R
TypeSport
CostUS$ 10495. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1203.00 ccm (73.41 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke3.5 x 3.8 mm (0.1 x 0.2 inches)
Valves/Cylinder
FuelingInjection. 49 mm down draft DDFI II fuel injection
Ignition
ExhaustLarge diameter headers with InterActive exhaust
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchWet, multi-plate, compensated
Driveline
Performance
Horespower103.00 HP (75.2 kW)
Torque113.90 Nm (11.6 kgf-m or 84.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity14.00 litres (3.70 gallons)
Emissions
Chassis
Frame TypeAluminum frame with Uniplanar™ powertrain vibration isolation system - Fuel in Frame
Rake21.0°
Trail84 mm (3.3 inches)
Front SuspensionShowa® inverted fork with adjustable compression damping, rebound damping and spring preload
Front Travel120 mm (4.7 inches)
Rear SuspensionShowa coil-over monoshock with remote, underseat reservoir and adjustable compression damping, rebound damping and spring preload
Rear Travel127 mm (5.0 inches)
Seat
Seat Height775 mm (30.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,935 mm (76.2 inches)
Total Width716 mm (28.2 inches)
Ground Clearance110 mm (4.4 inches)
Wheelbase1,321 mm (52.0 inches)
Dry Weight179.2 kg (395.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesSingle disc. ZTL™ type brake, 6-piston, fixed caliper, single-sided, inside out, stainless steel, floating rotor
Front Brake Diameter336 mm (13.2 inches)
Rear BrakesSingle disc. Stainless steel, single piston, floating caliper, fixed rotor
Rear Brake Diameter240 mm (9.4 inches)
Wheels
