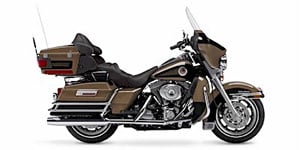

These are the known mechanical and performance specifications for your 2004 Harley-Davidson FLHTCUI Ultra Classic Electra Glide.
Basic Specs
Year2004
MakeHarley-Davidson
ModelHarley-Davidson FLHTCUI Ultra Classic Electra Glide
TypeCustom / cruiser
Cost
Engine
Displacement1449.00 ccm (88.42 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.8:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder2
FuelingInjection
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower
Torque109.00 Nm (11.1 kgf-m or 80.4 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame Type
Rake26.0°
Trail158 mm (6.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,500 mm (98.4 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,592 mm (62.7 inches)
Dry Weight372.0 kg (820.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-16
Rear Tire/Tyre150/85-16
Front BrakesDouble disc
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Batwing, fork-mounted fairing; lower fairings with storage compartments; nylon alloy saddlebags and fiberglass King Tour-Pak; 40-watt per channel, 4-speaker AM/FM/CD sound system; CB and intercom ;passenger sound system and CB/intercom controls (CB prohitited by law in some countries); Electronic Cruise Control
