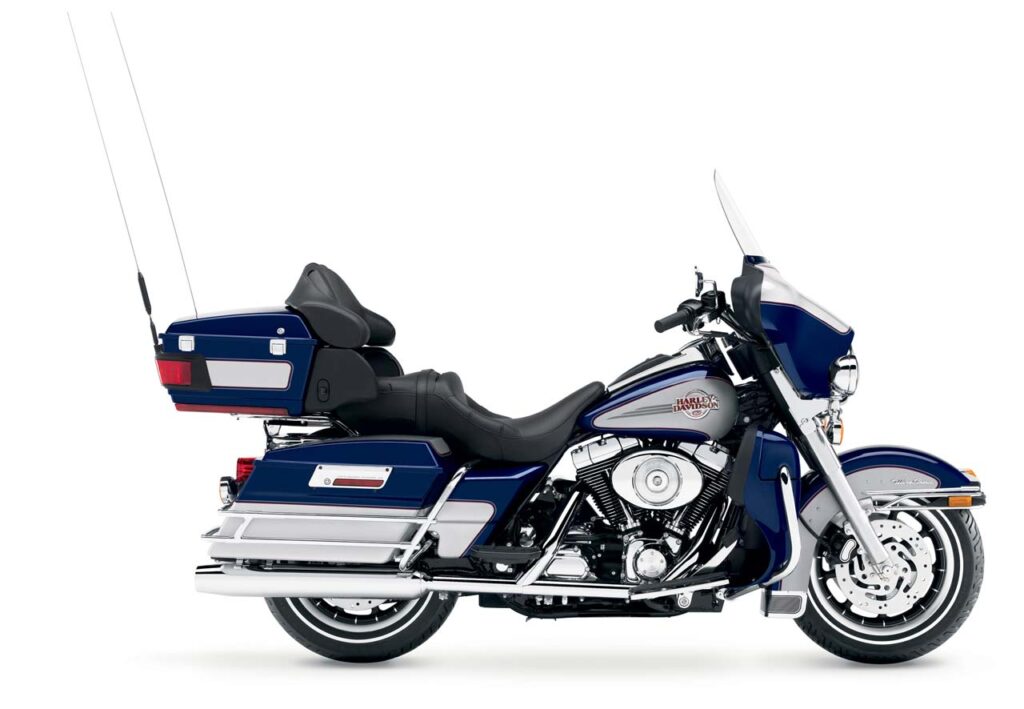

These are the known mechanical and performance specifications for your 2006 Harley-Davidson FLHTCUI Ultra Classic Electra Glide.
Basic Specs
Year2006
MakeHarley-Davidson
ModelHarley-Davidson FLHTCUI Ultra Classic Electra Glide
TypeCustom / cruiser
CostUS$ 19795. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1442.15 ccm (88.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression8.9:1
Bore/Stroke95.3 x 101.6 mm (3.8 x 4.0 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, cross-over duals
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline
Performance
Horespower
Torque116.61 Nm (11.9 kgf-m or 86.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.47 litres/100 km (18.3 km/l or 43.00 mpg)
Fuel Capacity18.92 litres (5.00 gallons)
Emissions126.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,497 mm (98.3 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight357.4 kg (788.0 pounds)
Wet Weight371.5 kg (819.0 pounds)
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
