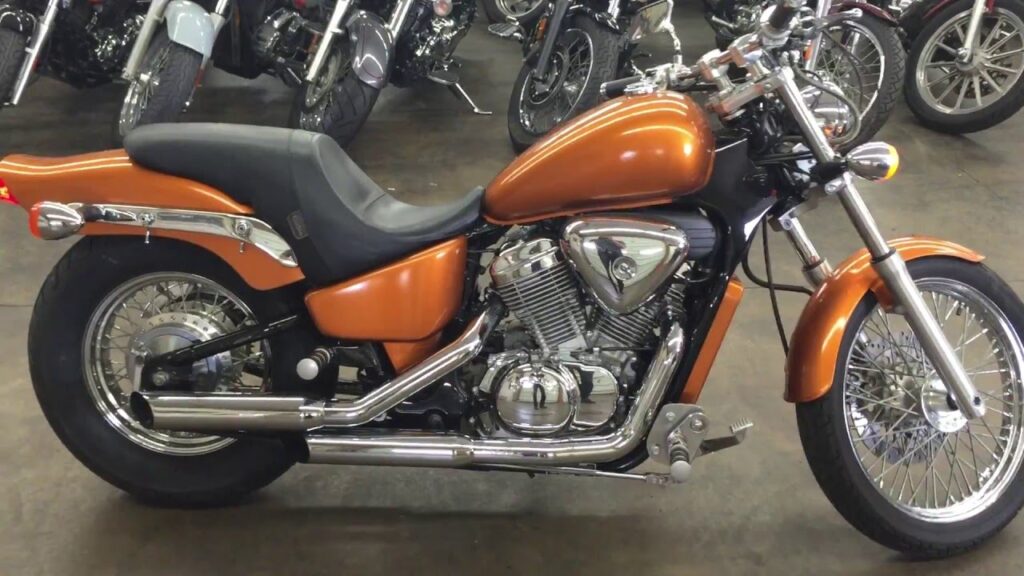

These are the known mechanical and performance specifications for your 2005 Honda Shadow VLX.
Basic Specs
Year2005
MakeHonda
ModelHonda Shadow VLX
TypeCustom / cruiser
CostUS$ 5099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement583.00 ccm (35.57 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke75.0 x 66.0 mm (3.0 x 2.6 inches)
Valves/Cylinder
FuelingCarburettor. Single 34mm diaphragm-type CV
IgnitionCD with electronic advance, two spark plugs per cylinder
Exhaust
Lubrication
CoolingLiquid
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.97 litres (2.90 gallons)
Emissions
Chassis
Frame TypeFront Suspension
Rake32.7°
Trail161 mm (6.3 inches)
Front Suspension39mm fork;
Front Travel145 mm (5.7 inches)
Rear SuspensionSingle-shock with seven-position spring-preload adjustability
Rear Travel89 mm (3.5 inches)
Seat
Seat Height650 mm (25.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,600 mm (63.0 inches)
Dry Weight205.0 kg (452.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre100/90-19
Rear Tire/Tyre170/80-15
Front BrakesSingle disc. 2-piston calipers.
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: VTX600C
