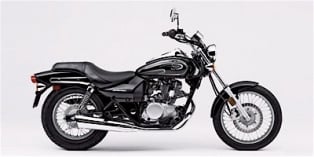

2005 Kawasaki Eliminator 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2005 Kawasaki Eliminator 125.

Basic Specs

Year2005
MakeKawasaki
ModelKawasaki Eliminator 125
CostUS$ 2599. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke55.0 x 52.4 mm (2.2 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Keihin PWK28
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.86 litres (3.40 gallons)
Emissions

Chassis

Frame TypeDouble-cradle, high-tensile steel
Rake34.0°
Trail
Front Suspension33mm hydraulic telescopic fork
Front Travel
Rear SuspensionSteel swingarm with dual shocks
Rear Travel
Seat
Seat Height681 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,049 mm (41.3 inches)
Total Length
Total Width780 mm (30.7 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,471 mm (57.9 inches)
Dry Weight127.9 kg (282.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-17
Rear Tire/Tyre130/90-15
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Eliminator 125. This Allround model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Carburettor. Keihin PWK28 allowing this machine to produce its horsepower and torque. According to our records engine heat of the Kawasaki Eliminator 125 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-17 and the rear is 130/90-15 . The entire package is supported by the frame, Double-cradle, high-tensile steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kawasaki Eliminator 125 was launched in 2005, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
