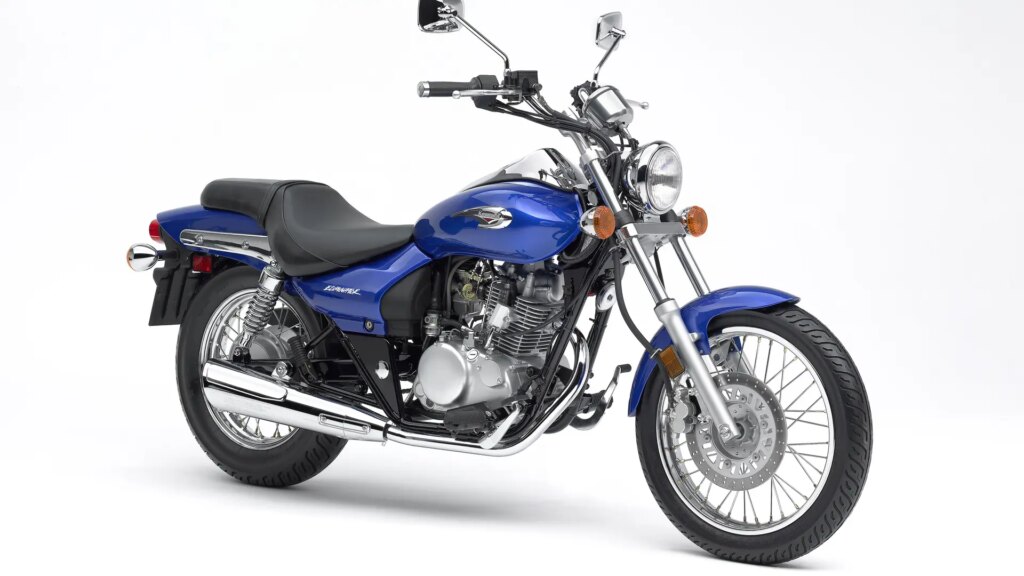

2006 Kawasaki Eliminator 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Kawasaki Eliminator 125.

Basic Specs

Year2006
MakeKawasaki
ModelKawasaki Eliminator 125
CostUS$ 2649. Prices depend on country, taxes, accessories, etc.

Engine

Displacement124.00 ccm (7.57 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke55.0 x 52.4 mm (2.2 x 2.1 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni BS28
IgnitionCDI
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower
Torque9.89 Nm (1.0 kgf-m or 7.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity12.86 litres (3.40 gallons)
Emissions

Chassis

Frame Type
Rake34.0°
Trail
Front Suspension36mm Hydraulic Telescopic Fork
Front Travel
Rear SuspensionTwin Shocks, 5-Way Adjustable Preload
Rear Travel
Seat
Seat Height681 mm (26.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,471 mm (57.9 inches)
Dry Weight132.0 kg (291.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-17
Rear Tire/Tyre130/90-15
Front BrakesSingle disc
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Kawasaki Eliminator 125. This Custom / cruiser model is powered by a Single cylinder, four-stroke engine with 124.00 ccm (7.57 cubic inches) of actual displacement before 9.6:1 compression. Fueling is metered via Carburettor. Mikuni BS28 allowing this machine to produce its horsepower and 9.89 Nm (1.0 kgf-m or 7.3 ft.lbs) torque. According to our records engine heat of the Kawasaki Eliminator 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 90/90-17 and the rear is 130/90-15 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Kawasaki Eliminator 125 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
