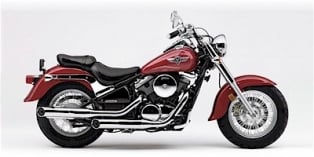

These are the known mechanical and performance specifications for your 2005 Kawasaki Vulcan 800 Classic.
Basic Specs
Year2005
MakeKawasaki
ModelKawasaki Vulcan 800 Classic
TypeCustom / cruiser
CostUS$ 6549. Prices depend on country, taxes, accessories, etc.
Engine
Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 66.2 mm (3.5 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK36
IgnitionDigital
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame TypeHigh-tensile steel, double cradle
Rake32.0°
Trail
Front Suspension41mm hydraulic telescopic fork
Front Travel
Rear SuspensionUNI-TRAK® single shock system with seven-way preload adjustment
Rear Travel
Seat
Seat Height706 mm (27.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,130 mm (44.5 inches)
Total Length
Total Width930 mm (36.6 inches)
Ground Clearance135 mm (5.3 inches)
Wheelbase1,600 mm (63.0 inches)
Dry Weight234.1 kg (516.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/90-x16
Rear Tire/Tyre140/90-x16
Front BrakesDouble disc. Hydraulic
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
