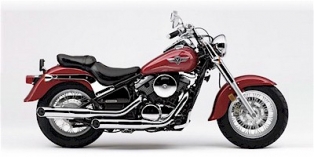

These are the known mechanical and performance specifications for your 2005 Kawasaki Vulcan 800.
Basic Specs
Year2005
MakeKawasaki
ModelKawasaki Vulcan 800
TypeCustom / cruiser
CostUS$ 6099. Prices depend on country, taxes, accessories, etc.
Engine
Displacement805.00 ccm (49.12 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke88.0 x 66.2 mm (3.5 x 2.6 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin CVK36
IgnitionDigital
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
Driveline
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.14 litres (4.00 gallons)
Emissions
Chassis
Frame TypeDouble-cradle, high-tensile steel
Rake34.0°
Trail
Front Suspension41mm hydraulic telescopic fork
Front Travel
Rear SuspensionUNI-TRAK® single-shock system
Rear Travel
Seat
Seat Height711 mm (28.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,171 mm (46.1 inches)
Total Length
Total Width826 mm (32.5 inches)
Ground Clearance160 mm (6.3 inches)
Wheelbase1,626 mm (64.0 inches)
Dry Weight225.0 kg (496.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-21
Rear Tire/Tyre140/90-x16
Front BrakesSingle disc. Hydraulic.
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
