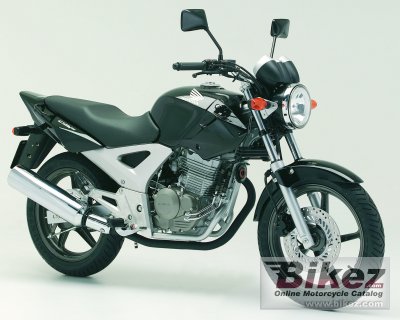

2006 Honda CBF 250 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda CBF 250.

Basic Specs

Year2006
MakeHonda
ModelHonda CBF 250
Cost

Engine

Displacement249.00 ccm (15.19 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.3:1
Bore/Stroke73.0 x 59.5 mm (2.9 x 2.3 inches)
Valves/Cylinder4
FuelingCarburettor. 32mm VE-L type carburettor
IgnitionDigital transistorised with electronic advance
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
Driveline

Performance

Horespower21.45 HP (15.7 kW)
Torque22.00 Nm (2.2 kgf-m or 16.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity16.00 litres (4.23 gallons)
Emissions

Chassis

Frame Type
Rake
Trail99 mm (3.9 inches)
Front Suspension37 mm telescopic fork
Front Travel130 mm (5.1 inches)
Rear SuspensionMonoshock
Rear Travel100 mm (3.9 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance180 mm (7.1 inches)
Wheelbase1,370 mm (53.9 inches)
Dry Weight139.0 kg (306.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre100/80-17
Rear Tire/Tyre130/70-17
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda CBF 250. This Naked bike model is powered by a Single cylinder, four-stroke engine with 249.00 ccm (15.19 cubic inches) of actual displacement before 9.3:1 compression. Fueling is metered via Carburettor. 32mm VE-L type carburettor allowing this machine to produce its 21.45 HP (15.7 kW) horsepower and 22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) torque. According to our records engine heat of the Honda CBF 250 is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 100/80-17 and the rear is 130/70-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Honda CBF 250 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
