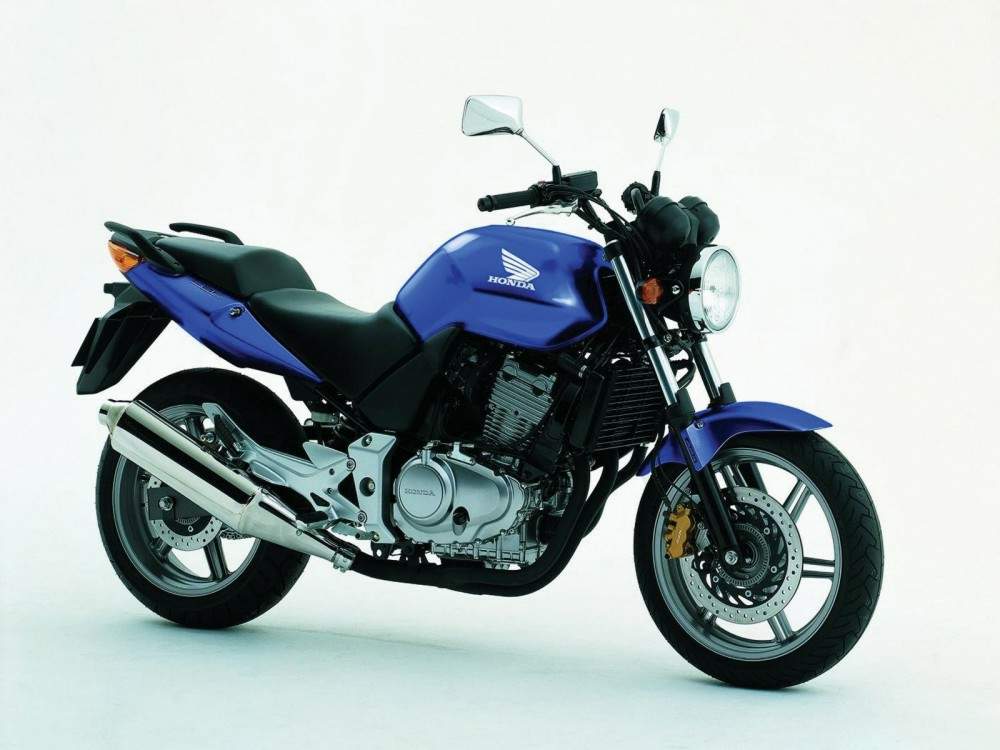

2006 Honda CBF 500 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2006 Honda CBF 500.

Basic Specs

Year2006
MakeHonda
ModelHonda CBF 500
Cost

Engine

Displacement499.00 ccm (30.45 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression10.5:1
Bore/Stroke73.0 x 59.6 mm (2.9 x 2.3 inches)
Valves/Cylinder
FuelingCarburettor. 34mm slanted flat-slide VP-type carburettor x 2
IgnitionComputer-controlled digital transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet, multiplate with coil springs
Driveline

Performance

Horespower56.32 HP (41.1 kW)
Torque45.00 Nm (4.6 kgf-m or 33.2 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity19.00 litres (5.02 gallons)
Emissions

Chassis

Frame Type
Rake
Trail110 mm (4.3 inches)
Front Suspension41mm telescopic fork
Front Travel120 mm (4.7 inches)
Rear SuspensionMonoshock damper with 7-step adjustable preload
Rear Travel125 mm (4.9 inches)
Seat
Seat Height770 mm (30.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance140 mm (5.5 inches)
Wheelbase1,480 mm (58.3 inches)
Dry Weight183.0 kg (403.4 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre160/60-ZR17
Front BrakesDouble disc
Front Brake Diameter296 mm (11.7 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels

Comments

It appears you're interested in specifications for the Honda CBF 500. This Naked bike model is powered by a Twin, four-stroke engine with 499.00 ccm (30.45 cubic inches) of actual displacement before 10.5:1 compression. Fueling is metered via Carburettor. 34mm slanted flat-slide VP-type carburettor x 2 allowing this machine to produce its 56.32 HP (41.1 kW) horsepower and 45.00 Nm (4.6 kgf-m or 33.2 ft.lbs) torque. According to our records engine heat of the Honda CBF 500 is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 160/60-ZR17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda CBF 500 was launched in 2006, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Available with ABS brakes
