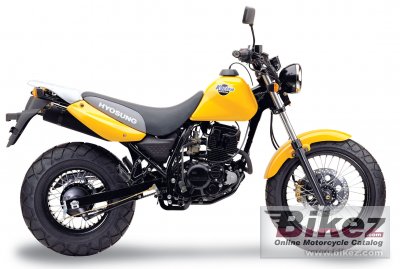

These are the known mechanical and performance specifications for your 2006 Hyosung Karion 125.
Basic Specs
Year2006
MakeHyosung
ModelHyosung Karion 125
TypeEnduro / offroad
Cost Euro 2645. Prices depend on country, taxes, accessories, etc.
Engine
Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder4
Fueling
Ignition
Exhaust
Lubrication
CoolingAir
Performance
Horespower11.66 HP (8.5 kW)
Torque9.40 Nm (1.0 kgf-m or 6.9 ft.lbs)
Top Speed101.0 km/h (62.8 mph)
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight135.0 kg (297.6 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre
Rear Tire/Tyre
Front BrakesSingle disc
Front Brake Diameter275 mm (10.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels
Comments
