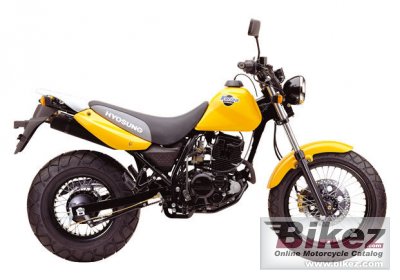

2007 Hyosung Karion 125 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2007 Hyosung Karion 125.

Basic Specs

Year2007
MakeHyosung
ModelHyosung Karion 125
Cost Euro 2445. Prices depend on country, taxes, accessories, etc.

Engine

Displacement125.00 ccm (7.63 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.9:1
Bore/Stroke57.0 x 48.8 mm (2.2 x 1.9 inches)
Valves/Cylinder4
FuelingCarburettor
IgnitionElectronic
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower11.66 HP (8.5 kW)
Torque9.40 Nm (1.0 kgf-m or 6.9 ft.lbs)
Top Speed101.0 km/h (62.8 mph)

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.00 litres (2.38 gallons)
Emissions

Chassis

Frame TypeSteel
Rake
Trail
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height790 mm (31.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase
Dry Weight125.0 kg (275.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/80-18
Rear Tire/Tyre180/80-14
Front BrakesSingle disc
Front Brake Diameter275 mm (10.8 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
Wheels

Comments

It appears you're interested in specifications for the Hyosung Karion 125. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 125.00 ccm (7.63 cubic inches) of actual displacement before 9.9:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 11.66 HP (8.5 kW) horsepower and 9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) torque. According to our records engine heat of the Hyosung Karion 125 is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 130/80-18 and the rear is 180/80-14 . The entire package is supported by the frame, Steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Expanding brake (drum brake) rear brakes. The Hyosung Karion 125 was launched in 2007, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
