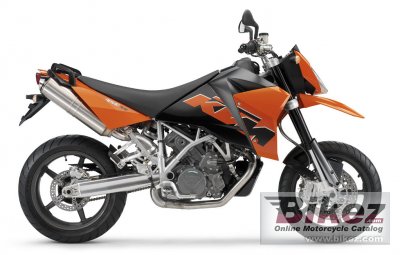

These are the known mechanical and performance specifications for your 2006 KTM 950 Supermoto Orange.
Basic Specs

Engine
Displacement942.00 ccm (57.48 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke100.0 x 72.0 mm (3.9 x 2.8 inches)
Valves/Cylinder
Fueling
IgnitionDenso battery ignition
ExhaustTwin stainless steel with catalytic converter
LubricationPressure lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Performance
Horespower96.55 HP (70.5 kW)
Torque94.00 Nm (9.6 kgf-m or 69.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity17.50 litres (4.62 gallons)
Emissions
Chassis
Frame TypeTubular space frame, chromium-molybdenum, powder-coated
Rake25.4°
Trail110 mm (4.3 inches)
Front SuspensionWP-USD 48 mm (1.89 inches)
Front Travel300 mm (11.8 inches)
Rear SuspensionWP-Monoshock
Rear Travel335 mm (13.2 inches)
Seat
Seat Height865 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width950 mm (37.4 inches)
Ground Clearance190 mm (7.5 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight191.0 kg (421.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
Wheels
