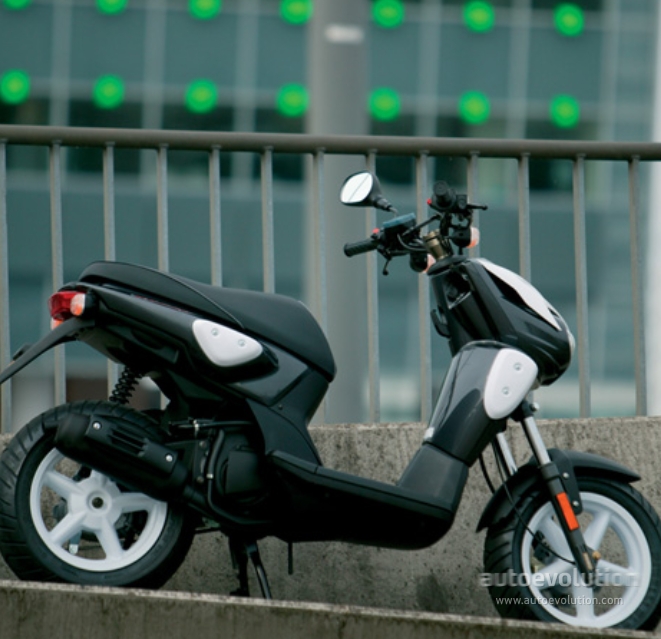

These are the known mechanical and performance specifications for your 2006 MBK Stunt.
Basic Specs
Engine
Displacement49.20 ccm (3.00 cubic inches)
Type
DetailsSingle cylinder, two-stroke
Max RPM
Compression11.2:1
Bore/Stroke40.0 x 39.2 mm (1.6 x 1.5 inches)
Valves/Cylinder
Fueling
IgnitionElectronic (C.D.I.)
Exhaust
LubricationSeparate lubrication
CoolingAir
Performance
Horespower3.62 HP (2.6 kW)
Torque4.00 Nm (0.4 kgf-m or 3.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity24.60 litres (6.50 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionHydraulic and telescopic fork
Front Travel
Rear SuspensionHydraulic unit swing
Rear Travel
Seat
Seat Height787 mm (31.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,077 mm (42.4 inches)
Total Length1,785 mm (70.3 inches)
Total Width668 mm (26.3 inches)
Ground Clearance155 mm (6.1 inches)
Wheelbase1,202 mm (47.3 inches)
Dry Weight75.0 kg (165.3 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/80-12
Rear Tire/Tyre130/90-10
Front BrakesSingle disc
Front Brake Diameter190 mm (7.5 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter110 mm (4.3 inches)
Wheels
