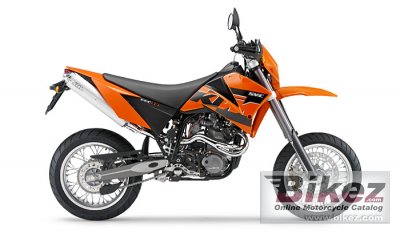

These are the known mechanical and performance specifications for your 2007 KTM 660 SMC.
Basic Specs
Engine
Displacement654.00 ccm (39.91 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.7:1
Bore/Stroke102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves/Cylinder
FuelingCarburettor. Keihin MX FCR 41
IgnitionKokusan DC-CDI
Exhaust2 x aluminium
LubricationPressure lubrication with 2 oil pumps
CoolingLiquid
Drivetrain
Gearbox5-speed
Final Drive
ClutchWet multi-disc clutch, operated hydraulically
Driveline
Performance
Horespower28.16 HP (20.6 kW)
Torque42.50 Nm (4.3 kgf-m or 31.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.20 litres (2.43 gallons)
Emissions
Chassis
Frame TypeDouble ground, chrommoly-steel frame, powder-coated
Rake27.0°
Trail99 mm (3.9 inches)
Front SuspensionWP USD
Front Travel115 mm (4.5 inches)
Rear SuspensionWP monoshock with Pro Lever
Rear Travel185 mm (7.3 inches)
Seat
Seat Height910 mm (35.8 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight138.0 kg (304.2 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-17
Rear Tire/Tyre160/60-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels
Comments
