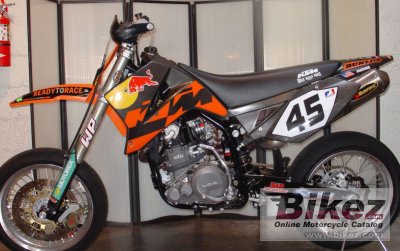

2003 KTM 660 Supermoto Factory Replica Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2003 KTM 660 Supermoto Factory Replica.

Basic Specs

Year2003
MakeKTM
ModelKTM 660 Supermoto Factory Replica
Cost

Engine

Displacement654.00 ccm (39.91 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.5:1
Bore/Stroke102.0 x 80.0 mm (4.0 x 3.1 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower72.00 HP (52.6 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity5.50 litres (1.45 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionWP-USD 48 Multi Adjuster
Front Travel280 mm (11.0 inches)
Rear SuspensionWP - Monoshock Super Moto Spezial
Rear Travel290 mm (11.4 inches)
Seat
Seat Height915 mm (36.0 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance290 mm (11.4 inches)
Wheelbase1,510 mm (59.4 inches)
Dry Weight114.0 kg (251.3 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/60-17
Rear Tire/Tyre165/55-17
Front BrakesSingle disc
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the KTM 660 Supermoto Factory Replica. This Enduro / offroad model is powered by a Single cylinder, four-stroke engine with 654.00 ccm (39.91 cubic inches) of actual displacement before 12.5:1 compression. Fueling is metered via Carburettor allowing this machine to produce its 72.00 HP (52.6 kW) horsepower and torque. According to our records engine heat of the KTM 660 Supermoto Factory Replica is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/60-17 and the rear is 165/55-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The KTM 660 Supermoto Factory Replica was launched in 2003, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
