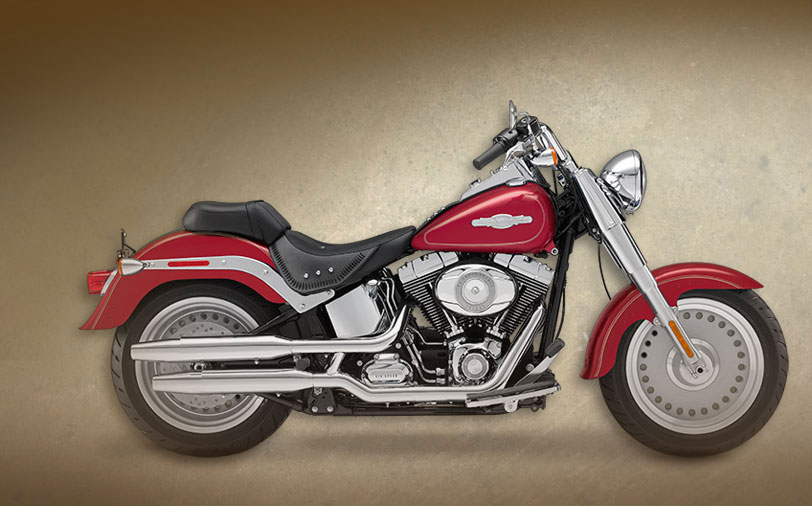

2008 Harley-Davidson FLSTF Fat Boy Firefighter Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2008 Harley-Davidson FLSTF Fat Boy Firefighter.

Basic Specs

Year2008
MakeHarley-Davidson
ModelHarley-Davidson FLSTF Fat Boy Firefighter
Cost

Engine

Displacement1573.25 ccm (96.00 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.3 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection
Ignition
ExhaustChrome, over/under shotgun duals
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
Driveline

Performance

Horespower
Torque123.39 Nm (12.6 kgf-m or 91.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption4.70 litres/100 km (21.3 km/l or 50.05 mpg)
Fuel Capacity18.92 litres (5.00 gallons)
Emissions109.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake32.0°
Trail147 mm (5.8 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height698 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,395 mm (94.3 inches)
Total Width
Ground Clearance
Wheelbase1,638 mm (64.5 inches)
Dry Weight314.8 kg (694.0 pounds)
Wet Weight323.9 kg (714.0 pounds)

Wheels & Brakes

Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front Brakes
Front Brake Diameter
Rear Brakes
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLSTF Fat Boy Firefighter. This Custom / cruiser model is powered by a V2, four-stroke engine with 1573.25 ccm (96.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and 123.39 Nm (12.6 kgf-m or 91.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLSTF Fat Boy Firefighter is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 140/75-R17 and the rear is 200/55-R17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on front brakes and rear brakes. The Harley-Davidson FLSTF Fat Boy Firefighter was launched in 2008, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
