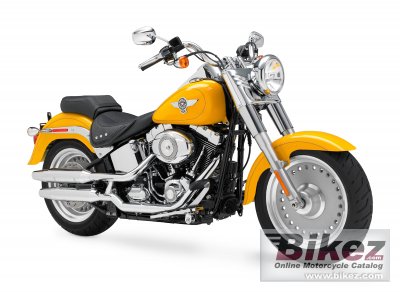

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLSTF Fat Boy.
Basic Specs
Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLSTF Fat Boy
TypeCustom / cruiser
CostUS$ 15999. Euro 20195. UK £ 15550. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 96B
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, over/under shotgun exhaust with dual mufflers
LubricationPressurized, dry-sump
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/66 ratio
Performance
Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity19.70 litres (5.20 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Rake31.0°
Trail147 mm (5.8 inches)
Front Suspension41.3mm telescopic, “beer can” covers
Front Travel130 mm (5.1 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel109 mm (4.3 inches)
Seat
Seat Height699 mm (27.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,396 mm (94.3 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,638 mm (64.5 inches)
Dry Weight314.8 kg (694.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
WheelsSilver, Bullet Hole Disc Cast Aluminum
