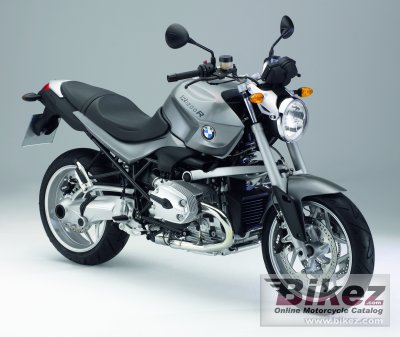

2009 BMW R 1200 R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 BMW R 1200 R.

Basic Specs

Year2009
MakeBMW
ModelBMW R 1200 R
TypeSport
Cost

Engine

Displacement1170.00 ccm (71.39 cubic inches)
Type
DetailsTwo cylinder boxer, four-stroke
Max RPM
Compression12.0:1
Bore/Stroke101.0 x 73.0 mm (4.0 x 2.9 inches)
Valves/Cylinder4
FuelingInjection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin-spark ignition
Ignition
ExhaustClosed-loop 3-way catalytic converter, emission standard EU-3
Lubrication
CoolingOil & air

Drivetrain

Gearbox6-speed
Final DriveShaft drive (cardan)
ClutchSingle dry plate clutch, hydraulically operated
Driveline

Performance

Horespower107.28 HP (78.3 kW)
Torque115.00 Nm (11.7 kgf-m or 84.8 ft.lbs)
Top Speed200.0 km/h (124.3 mph)

Fuel Economy & Polution

Fuel Consumption4.10 litres/100 km (24.4 km/l or 57.37 mpg)
Fuel Capacity18.00 litres (4.76 gallons)
Emissions95.1 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeTwo-section frame consisting of front and rear sections with load-bearing engine-gearbox unit
Rake27.1°
Trail119 mm (4.7 inches)
Front SuspensionBMW Motorrad Telelever
Front Travel120 mm (4.7 inches)
Rear SuspensionCast aluminium single-sided swing arm with BMW Motorrad Paralever
Rear Travel140 mm (5.5 inches)
Seat
Seat Height800 mm (31.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,915 mm (75.4 inches)
Total Length2,145 mm (84.4 inches)
Total Width872 mm (34.3 inches)
Ground Clearance
Wheelbase1,495 mm (58.9 inches)
Dry Weight198.0 kg (436.5 pounds)
Wet Weight223.0 kg (491.6 pounds)

Wheels & Brakes

Front Tire/Tyre120/70-ZR17
Rear Tire/Tyre180/55-ZR17
Front BrakesDouble disc. Optional ABS
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. Optional ABS
Rear Brake Diameter265 mm (10.4 inches)
Wheels

Comments

It appears you're interested in specifications for the BMW R 1200 R. This Sport model is powered by a Two cylinder boxer, four-stroke engine with 1170.00 ccm (71.39 cubic inches) of actual displacement before 12.0:1 compression. Fueling is metered via Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin-spark ignition allowing this machine to produce its 107.28 HP (78.3 kW) horsepower and 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) torque. According to our records engine heat of the BMW R 1200 R is moderated by Oil & air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 120/70-ZR17 and the rear is 180/55-ZR17 . The entire package is supported by the frame, Two-section frame consisting of front and rear sections with load-bearing engine-gearbox unit. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. Optional ABS front brakes and Single disc. Optional ABS rear brakes. The BMW R 1200 R was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
