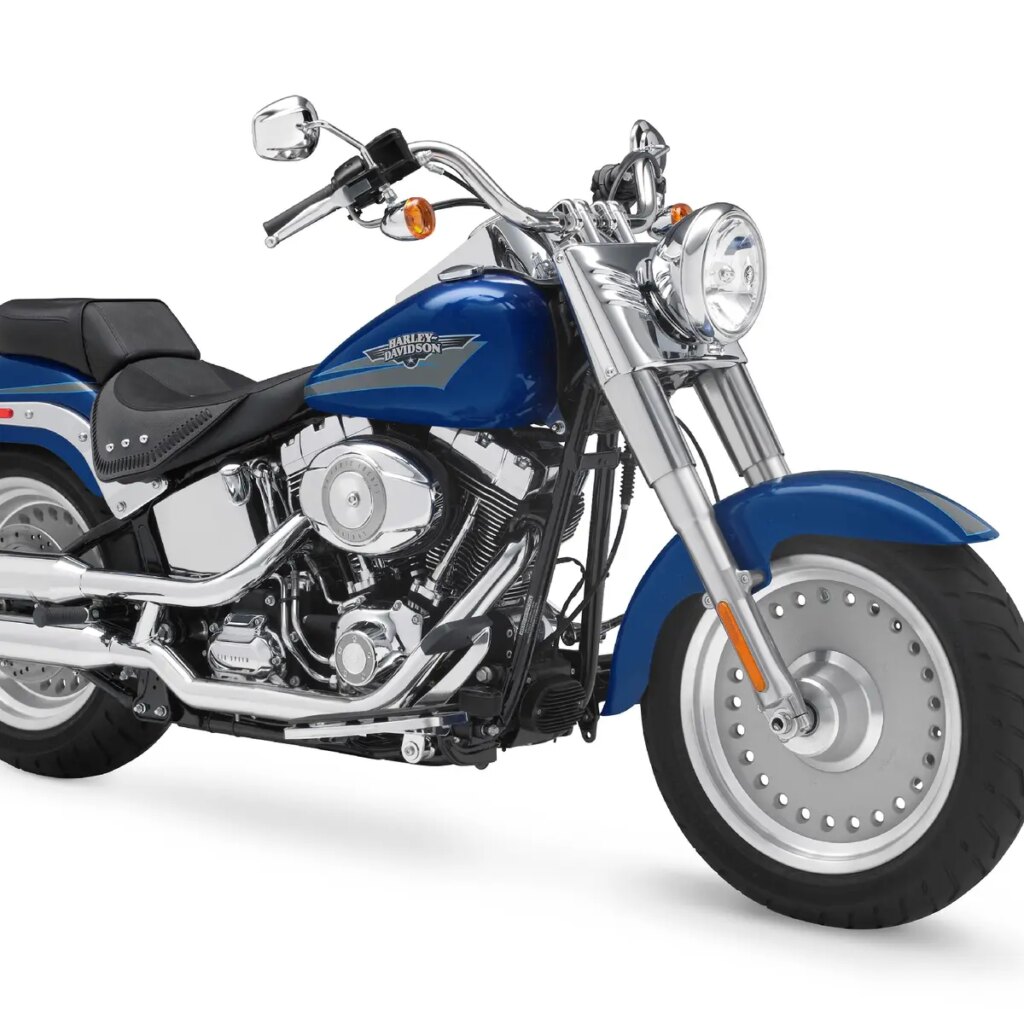

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FLSTF Fat Boy.
Basic Specs
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, over/under shotgun exhaust with dual mufflers
Lubrication
CoolingAir
Performance
Horespower
Torque120.00 Nm (12.2 kgf-m or 88.5 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone;
Rake32.0°
Trail147 mm (5.8 inches)
Front Suspension41.3mm telescopic, “beer can” covers
Front Travel130 mm (5.1 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel109 mm (4.3 inches)
Seat
Seat Height645 mm (25.4 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,396 mm (94.3 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,635 mm (64.4 inches)
Dry Weight313.0 kg (690.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre140/75-R17
Rear Tire/Tyre200/55-R17
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels
Comments
Black powder-coated engine with chrome treatment covers; Chrome, “horseshoe”oil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Full-length rider footboards; Standard passenger footpegs; Chrome, internally-wired handlebars; Two-piece, two-up Softail® classic seat with removable seat pillionoil tank with chrome external oil lines; Chrome, nostalgic fuel tank console; Chrome, bullet headlamp; Chrome, isolated riser; Forward-mounted rider footpegs; Standard passenger footpegs; Polished steel, “ape-hanger” handlebars; One-piece, two-up Softail® classic seat; Passenger backrest;
