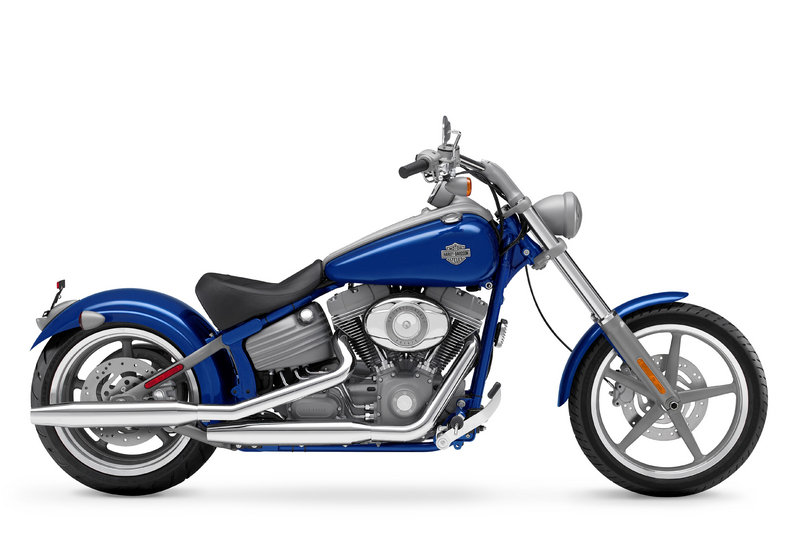

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXCW Softail Rocker.
Basic Specs

Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir
Performance
Horespower
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions
Chassis
Frame TypeMild steel tubular frame; rectangular section backbone;
Rake36.5°
Trail157 mm (6.2 inches)
Front Suspension49mm telescopic fork
Front Travel127 mm (5.0 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel79 mm (3.1 inches)
Seat
Seat Height622 mm (24.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,415 mm (95.1 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,760 mm (69.3 inches)
Dry Weight307.0 kg (676.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre90/90-R19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
Wheels
Comments
Silver powder-coated engine; Custom finned cast aluminium “horseshoe” oil tankwith chrome external oil lines; Painted, stretch low-profile tank console; Fire-truck inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted rider footpegs; Stainless steel, pull-back, internally-wired handlebars; Lowest seat height of all Harley-Davidson® motorcycles;
