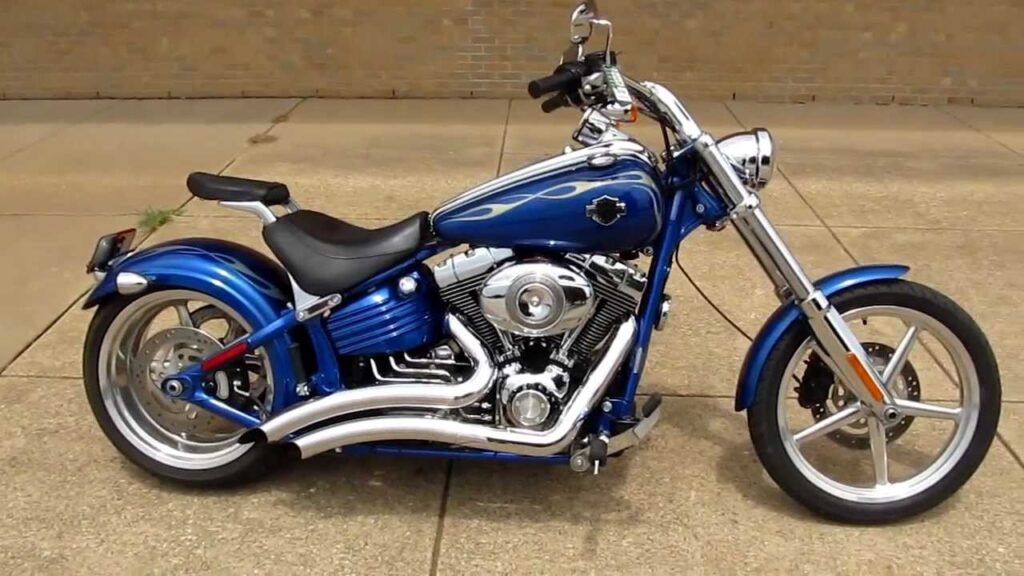

2009 Harley-Davidson FXCWC Rocker C Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2009 Harley-Davidson FXCWC Rocker C.

Basic Specs

Year2009
MakeHarley-Davidson
ModelHarley-Davidson FXCWC Rocker C
Cost

Engine

Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder
FuelingInjection. ESPFI
Ignition
ExhaustChrome, staggered shorty exhaust with dual mufflers
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
Clutch9-plate, wet
Driveline

Performance

Horespower
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity18.90 litres (4.99 gallons)
Emissions

Chassis

Frame TypeMild steel tubular frame; rectangular section backbone; stamped,
Rake36.5°
Trail157 mm (6.2 inches)
Front SuspensionTelescopic fork, 49 mm
Front Travel127 mm (5.0 inches)
Rear SuspensionHidden, horizontal-mounted, coil-over
Rear Travel79 mm (3.1 inches)
Seat
Seat Height641 mm (25.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,415 mm (95.1 inches)
Total Width
Ground Clearance135 mm (5.3 inches)
Wheelbase1,760 mm (69.3 inches)
Dry Weight307.0 kg (676.8 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre90/90-R19
Rear Tire/Tyre240/40-R18
Front BrakesSingle disc. 4-piston
Front Brake Diameter292 mm (11.5 inches)
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter292 mm (11.5 inches)
Wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FXCWC Rocker C. This Custom / cruiser model is powered by a V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before compression. Fueling is metered via Injection. ESPFI allowing this machine to produce its horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FXCWC Rocker C is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 90/90-R19 and the rear is 240/40-R18 . The entire package is supported by the frame, Mild steel tubular frame; rectangular section backbone; stamped,. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston front brakes and Single disc. 2-piston rear brakes. The Harley-Davidson FXCWC Rocker C was launched in 2009, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Black powder-coated engine with chrome treatment covers; Colour-matched“horseshoe” oil tank with chrome external oil lines; Chrome, stretch low-profile tank console; Cloisonne 3-D tank medallions; Chrome, fire-truck inspired bullet headlamp; Bullet style LED turn signals; Adjustable, V-bar riser; Forward-mounted rider footpegs; Standard passenger footpegs; Stainless steel, pull-back, internally-wired handlebars; Solo style “Trick™” two-in-one seat;
