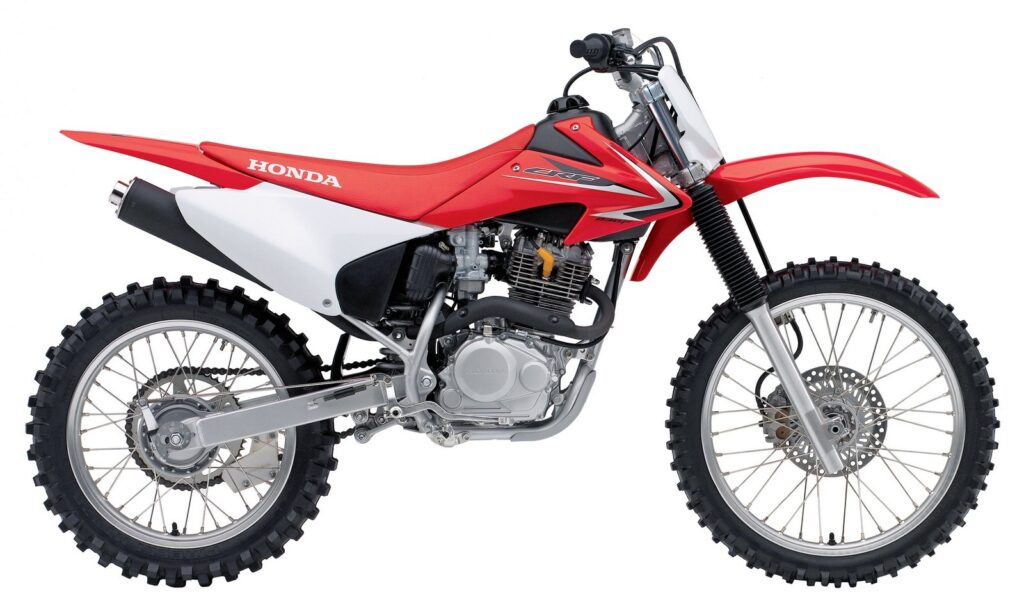

These are the known mechanical and performance specifications for your 2009 Honda CRF230F.
Basic Specs
Year2009
MakeHonda
ModelHonda CRF230F
TypeEnduro / offroad
CostUS$ 3699. Prices depend on country, taxes, accessories, etc.
Engine
Displacement223.00 ccm (13.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.0:1
Bore/Stroke65.5 x 66.2 mm (2.6 x 2.6 inches)
Valves/Cylinder2
FuelingCarburettor. 26mm piston-valve carburator
IgnitionCDI
Exhaust
Lubrication
CoolingAir
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.19 litres (1.90 gallons)
Emissions
Chassis
Frame Type
Rake27.3°
Trail112 mm (4.4 inches)
Front Suspension37mm leading-axle Showa fork
Front Travel241 mm (9.5 inches)
Rear SuspensionPro-Link Showa single-shock with spring-preload adjustability
Rear Travel229 mm (9.0 inches)
Seat
Seat Height866 mm (34.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance297 mm (11.7 inches)
Wheelbase1,374 mm (54.1 inches)
Dry Weight
Wet Weight112.9 kg (249.0 pounds)
Wheels & Brakes
Front Tire/Tyre80/21-21
Rear Tire/Tyre100/18-18
Front BrakesSingle disc
Front Brake Diameter240 mm (9.4 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: CRF230F
