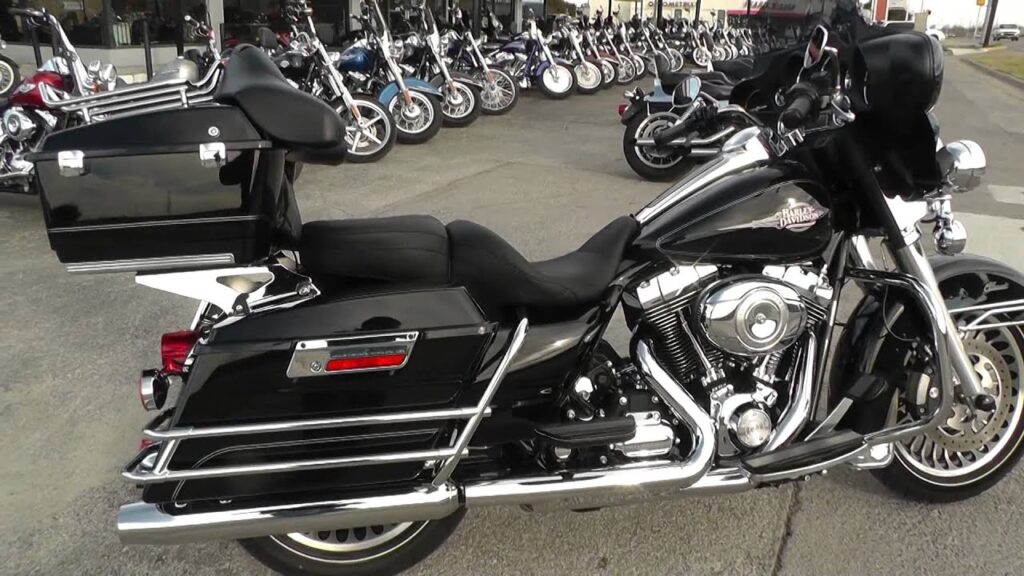

These are the known mechanical and performance specifications for your 2010 Harley-Davidson FLHTC Electra Glide Classic.
Basic Specs
Year2010
MakeHarley-Davidson
ModelHarley-Davidson FLHTC Electra Glide Classic
TypeTouring
CostUS$ 18999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1584.00 ccm (96.66 cubic inches)
Type
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers and taper end caps
Lubrication
CoolingAir
Performance
Horespower
Torque127.00 Nm (12.9 kgf-m or 93.7 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption6.72 litres/100 km (14.9 km/l or 35.00 mpg)
Fuel Capacity22.70 litres (6.00 gallons)
Emissions155.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone;
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,496 mm (98.3 inches)
Total Width
Ground Clearance145 mm (5.7 inches)
Wheelbase1,612 mm (63.5 inches)
Dry Weight375.0 kg (826.7 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels
Comments
