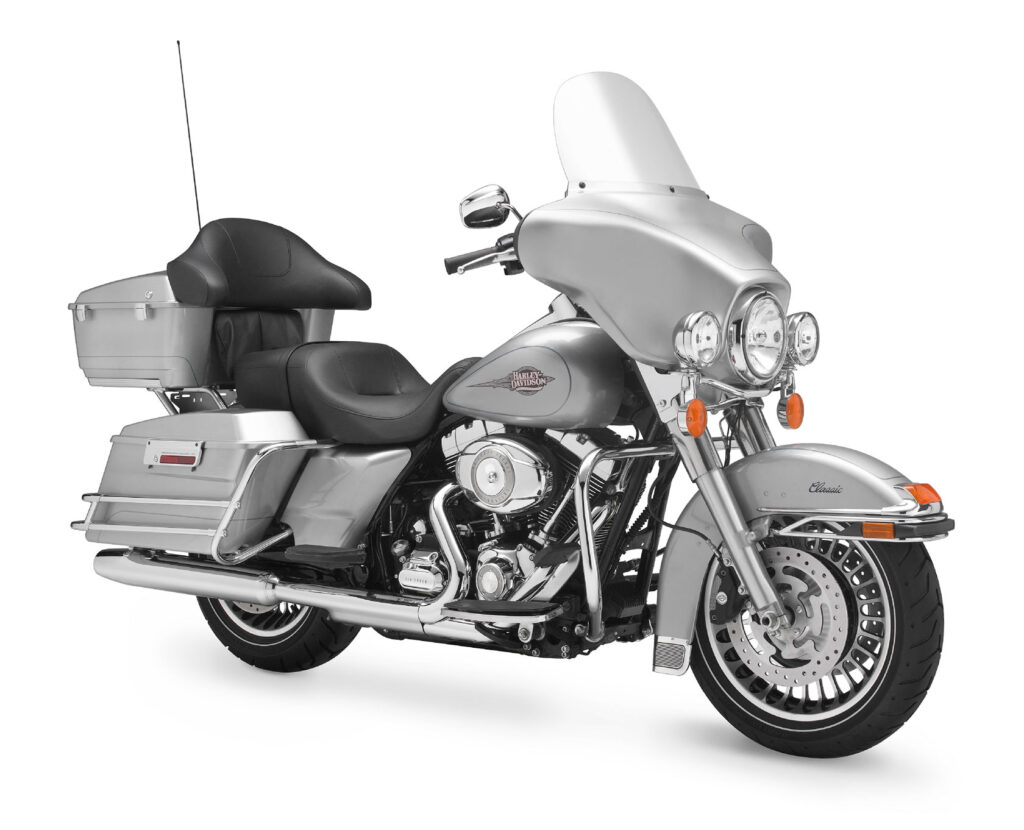

2011 Harley-Davidson FLHTC Electra Glide Classic Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLHTC Electra Glide Classic.

Basic Specs

Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLHTC Electra Glide Classic
CostUS$ 18999. Euro 23785. UK £ 18390. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1584.00 ccm (96.66 cubic inches)
TypeTwin Cam 96.
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke95.3 x 111.1 mm (3.8 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
Exhaust2-1-2 chrome exhaust with dual mufflers and taper end caps
LubricationPressurized, dry-sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMultiplate, wet
Driveline

Performance

Horespower
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.29 litres/100 km (18.9 km/l or 44.47 mpg)
Fuel Capacity22.70 litres (6.00 gallons)
Emissions122.7 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone;
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height739 mm (29.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,496 mm (98.3 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,612 mm (63.5 inches)
Dry Weight375.1 kg (827.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/80-B17
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper. Optional ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper. Optional ABS.
Rear Brake Diameter300 mm (11.8 inches)
WheelsBlack, 28-spoke Cast Aluminum

Comments

It appears you're interested in specifications for the Harley-Davidson FLHTC Electra Glide Classic. This Touring model is powered by a Twin Cam 96. V2, four-stroke engine with 1584.00 ccm (96.66 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLHTC Electra Glide Classic is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/80-B17 and the rear is 180/65-B16 . The entire package is supported by the frame, Mild steel; tubular frame; two-piece stamped and welded backbone;. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston fixed caliper. Optional ABS. front brakes and Single disc. 4-piston fixed caliper. Optional ABS. rear brakes. The Harley-Davidson FLHTC Electra Glide Classic was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
