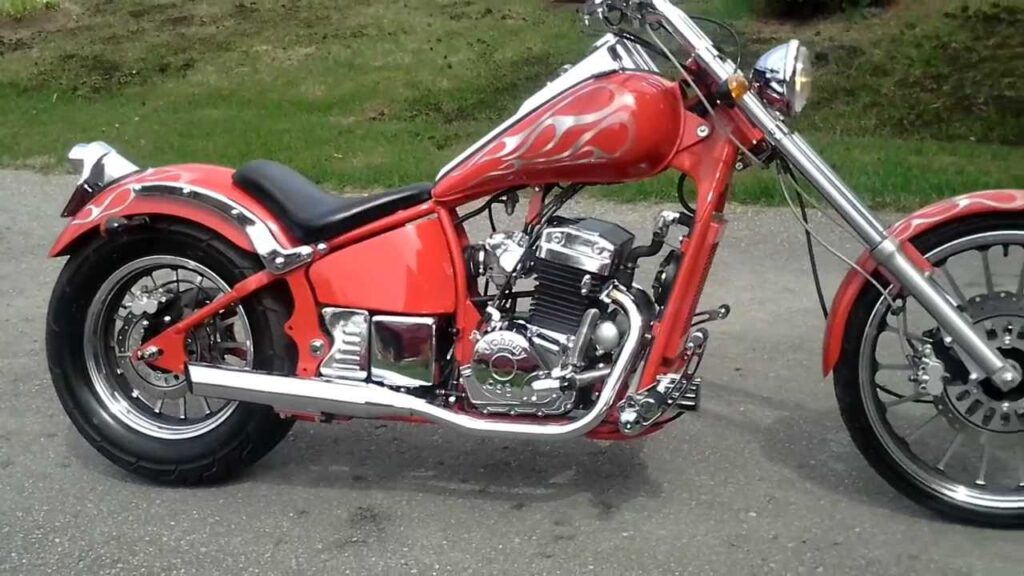

2010 Johnny Pag Spyder Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2010 Johnny Pag Spyder.

Basic Specs

Year2010
MakeJohnny Pag
ModelJohnny Pag Spyder
CostUS$ 4699. Prices depend on country, taxes, accessories, etc.

Engine

Displacement300.00 ccm (18.31 cubic inches)
Type
DetailsTwin, four-stroke
Max RPM
Compression
Bore/Stroke57.0 x 53.0 mm (2.2 x 2.1 inches)
Valves/Cylinder2
FuelingCarburettor. Dual 26mm Keihin Vacuum Carburetor
IgnitionC.D.I.
Exhaust
LubricationForced Lubrication
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
ClutchMultiplate oil bath
Driveline

Performance

Horespower23.80 HP (17.4 kW)
Torque18.50 Nm (1.9 kgf-m or 13.6 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption3.61 litres/100 km (27.7 km/l or 65.16 mpg)
Fuel Capacity
Emissions83.8 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake42.0°
Trail
Front Suspension39 mm telescopic forks
Front Travel
Rear SuspensionDual shocks, fully-adjustable
Rear Travel
Seat
Seat Height508 mm (20.0 inches) If adjustable, lowest setting.
Alt. Seat Height584 mm (23.0 inches) If adjustable, highest setting.
Total Height
Total Length
Total Width
Ground Clearance152 mm (6.0 inches)
Wheelbase1,854 mm (73.0 inches)
Dry Weight
Wet Weight163.3 kg (360.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/90-21
Rear Tire/Tyre160/90-18
Front BrakesDouble disc. 2 piston calipers
Front Brake Diameter
Rear BrakesSingle disc. 2 piston calipers
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Johnny Pag Spyder. This Custom / cruiser model is powered by a Twin, four-stroke engine with 300.00 ccm (18.31 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. Dual 26mm Keihin Vacuum Carburetor allowing this machine to produce its 23.80 HP (17.4 kW) horsepower and 18.50 Nm (1.9 kgf-m or 13.6 ft.lbs) torque. According to our records engine heat of the Johnny Pag Spyder is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 80/90-21 and the rear is 160/90-18 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 2 piston calipers front brakes and Single disc. 2 piston calipers rear brakes. The Johnny Pag Spyder was launched in 2010, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Also called JPM Spyder 300. Located in Orange County, California.
