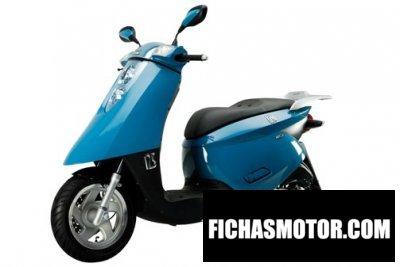

These are the known mechanical and performance specifications for your 2010 Nipponia Ezio 50.
Basic Specs
Engine
Displacement49.60 ccm (3.03 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.5:1
Bore/Stroke38.9 x 41.8 mm (1.5 x 1.6 inches)
Valves/Cylinder
FuelingCarburettor
IgnitionDC CDI
ExhaustEuro 2
Lubrication
CoolingOil & air
Drivetrain
GearboxAutomatic
Final DriveBelt
ClutchDry, automatically centrifugal type
Driveline
Performance
Horespower6.17 HP (4.5 kW)
Torque3.00 Nm (0.3 kgf-m or 2.2 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity7.50 litres (1.98 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, hydraulic fork
Front Travel
Rear SuspensionDouble hydraulic shock absorbers
Rear Travel
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,140 mm (44.9 inches)
Total Length1,950 mm (76.8 inches)
Total Width700 mm (27.6 inches)
Ground Clearance
Wheelbase
Dry Weight108.0 kg (238.1 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre120/70-12
Rear Tire/Tyre120/70-12
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
