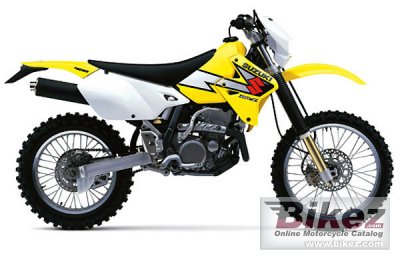

These are the known mechanical and performance specifications for your 2010 Suzuki DR-Z400E.
Basic Specs
Engine
Displacement399.00 ccm (24.35 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingCarburettor. Mikuni BSR36
IgnitionDigital/DC-CDI
Exhaust
LubricationWet sump
CoolingOil & air
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionTelescopic, cartridge-type, oil-damped, adjustable preload, 14-way compression damping and 18-way rebound damping
Front Travel
Rear SuspensionLink-type, fully-adjustable spring preload, adjustable high/low compression dampimg and adjustable rebound damping
Rear Travel
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,235 mm (88.0 inches)
Total Width825 mm (32.5 inches)
Ground Clearance325 mm (12.8 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight119.0 kg (262.4 pounds)
Wet Weight123.5 kg (272.3 pounds)
Wheels & Brakes
Front Tire/Tyre80/0-21
Rear Tire/Tyre110/0-18
Front BrakesSingle disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
