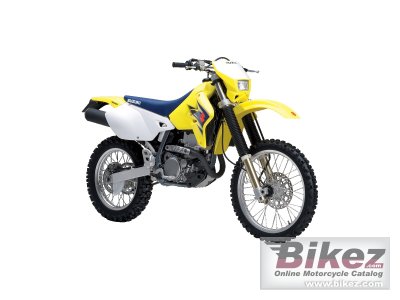

2011 Suzuki DR-Z400E Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Suzuki DR-Z400E.

Basic Specs

Year2011
MakeSuzuki
ModelSuzuki DR-Z400E
CostUS$ 5199. Prices depend on country, taxes, accessories, etc.

Engine

Displacement398.00 ccm (24.29 cubic inches)
Type4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28º included valve angle and shim-under-bucket valve adjustment system.
DetailsSingle cylinder, four-stroke
Max RPM
Compression12.2:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder4
FuelingCarburettor. Keihin™ FCR39. 6-liter airbox,
IgnitionDigital/DC-CDI
Exhaust
LubricationWet sump
CoolingOil & air

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline#520 chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame TypeChrome-moly steel
Rake
Trail
Front SuspensionTelescopic, cartridge-type, oil-damped, adjustable preload, 14-way compression damping and 18-way rebound damping
Front Travel
Rear SuspensionLink-type, fully-adjustable spring preload, adjustable high/low compression dampimg and adjustable rebound damping
Rear Travel
Seat
Seat Height945 mm (37.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,235 mm (88.0 inches)
Total Width825 mm (32.5 inches)
Ground Clearance325 mm (12.8 inches)
Wheelbase1,475 mm (58.1 inches)
Dry Weight
Wet Weight123.5 kg (272.3 pounds)

Wheels & Brakes

Front Tire/Tyre80/100-21
Rear Tire/Tyre110/100-18
Front BrakesSingle disc
Front Brake Diameter250 mm (9.8 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
Wheels

Comments

It appears you're interested in specifications for the Suzuki DR-Z400E. This Enduro / offroad model is powered by a 4-valve cylinder head with 36mm intake valves, 29mm exhaust valves, narrow 28º included valve angle and shim-under-bucket valve adjustment system. Single cylinder, four-stroke engine with 398.00 ccm (24.29 cubic inches) of actual displacement before 12.2:1 compression. Fueling is metered via Carburettor. Keihin™ FCR39. 6-liter airbox, allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki DR-Z400E is moderated by Oil & air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-21 and the rear is 110/100-18 . The entire package is supported by the frame, Chrome-moly steel. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Suzuki DR-Z400E was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
