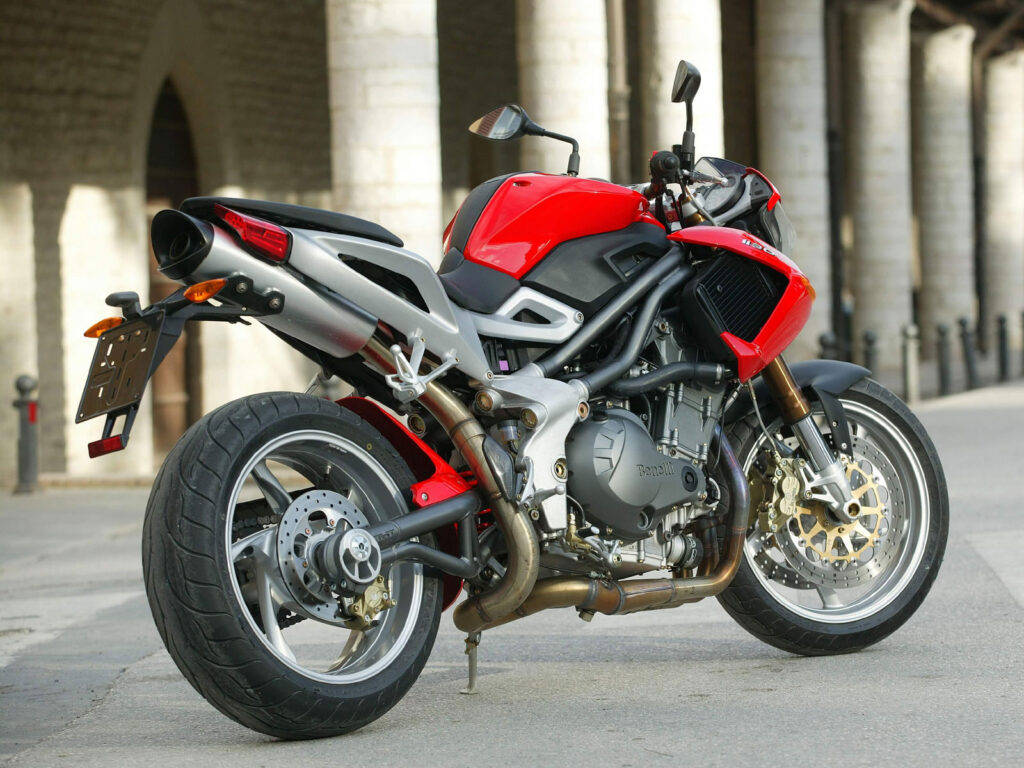

2011 Benelli TNT 1130K Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Benelli TNT 1130K.

Basic Specs

Year2011
MakeBenelli
ModelBenelli TNT 1130K
Cost

Engine

Displacement1131.00 ccm (69.01 cubic inches)
TypeFitted with anti-vibration countershaft
DetailsIn-line three, four-stroke
Max RPM
Compression
Bore/Stroke88.0 x 62.0 mm (3.5 x 2.4 inches)
Valves/Cylinder4
FuelingInjection
IgnitionSingle coil inductive discharge electronic ignition
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
ClutchWet multiplate
Driveline

Performance

Horespower135.44 HP (98.9 kW)
Torque117.00 Nm (11.9 kgf-m or 86.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity22.00 litres (5.81 gallons)
Emissions

Chassis

Frame Type
Rake25.0°
Trail102 mm (4.0 inches)
Front SuspensionUpside down fork, 50 mm
Front Travel150 mm (5.9 inches)
Rear SuspensionSteel trestle swingarm, progressive rear dumper with hydraulic extension and spring preload adjustments
Rear Travel144 mm (5.7 inches)
Seat
Seat Height780 mm (30.7 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,050 mm (41.3 inches)
Total Length2,100 mm (82.7 inches)
Total Width790 mm (31.1 inches)
Ground Clearance
Wheelbase1,419 mm (55.9 inches)
Dry Weight215.0 kg (474.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre120/70-17
Rear Tire/Tyre180/55-17
Front BrakesDouble disc. 4-piston cliper
Front Brake Diameter320 mm (12.6 inches)
Rear BrakesSingle disc. 2-piston caliper
Rear Brake Diameter240 mm (9.4 inches)
WheelsIn gravity moulded aluminium alloy

Comments

It appears you're interested in specifications for the Benelli TNT 1130K. This Naked bike model is powered by a Fitted with anti-vibration countershaft In-line three, four-stroke engine with 1131.00 ccm (69.01 cubic inches) of actual displacement before compression. Fueling is metered via Injection allowing this machine to produce its 135.44 HP (98.9 kW) horsepower and 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) torque. According to our records engine heat of the Benelli TNT 1130K is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 120/70-17 and the rear is 180/55-17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston cliper front brakes and Single disc. 2-piston caliper rear brakes. The Benelli TNT 1130K was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
