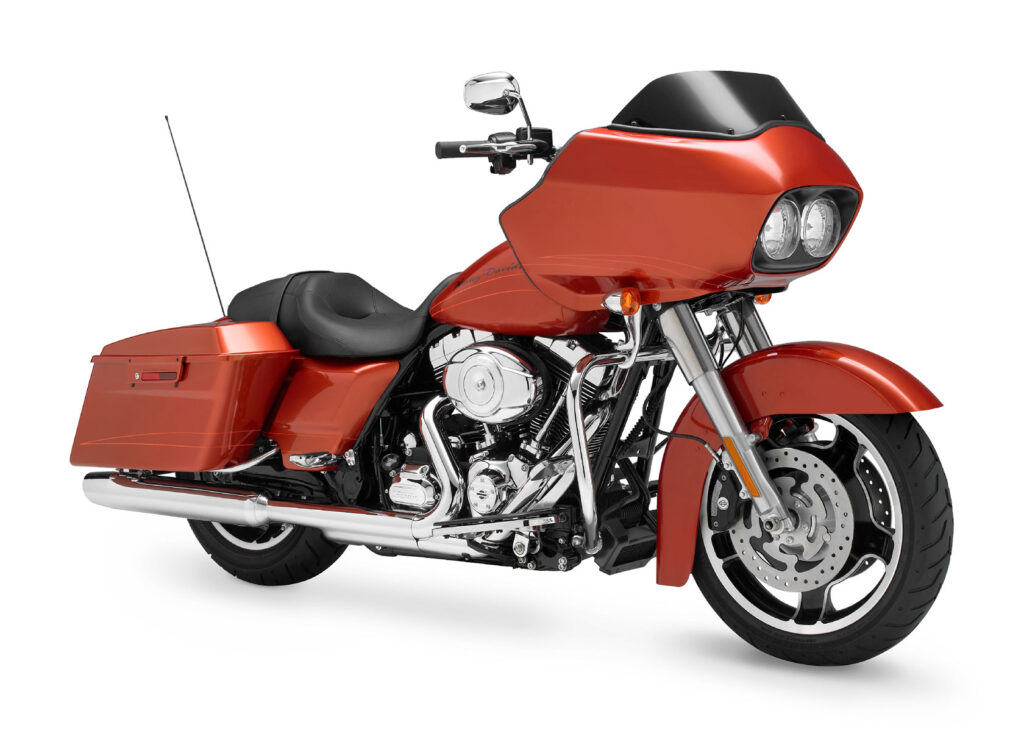

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLTRX Road Glide Custom.
Basic Specs
Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLTRX Road Glide Custom
TypeCustom / cruiser
CostUS$ 18999. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1573.25 ccm (96.00 cubic inches)
TypeAir-cooled twin Cam 96, optional Twin Cam 103
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
Exhaust
LubricationPressurized, dry-sump. With oil cooler for Twin Cam 103 engine.
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/68 ratio
Performance
Horespower
Torque126.00 Nm (12.8 kgf-m or 92.9 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.29 litres/100 km (18.9 km/l or 44.47 mpg)
Fuel Capacity22.70 litres (6.00 gallons)
Emissions122.7 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3 mm telescopic, triple-circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height688 mm (27.1 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,507 mm (98.7 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight350.2 kg (772.0 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/65-B16
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
WheelsBlack, Slotted Disc Cast Aluminum
