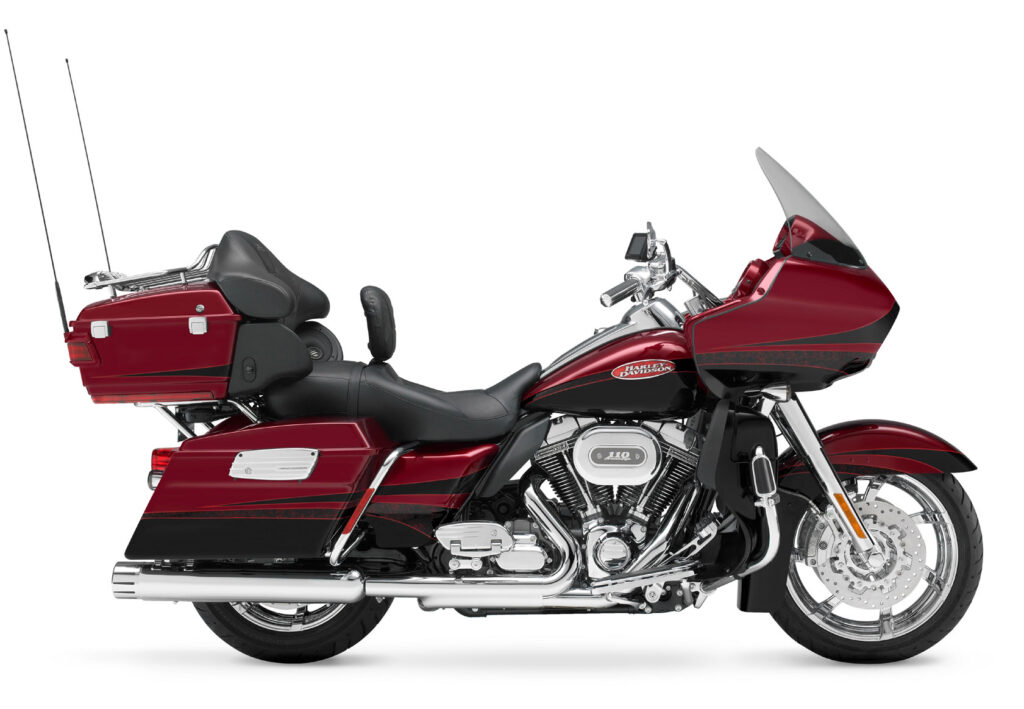

2011 Harley-Davidson FLTRUSE CVO Road Glide Ultra Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Harley-Davidson FLTRUSE CVO Road Glide Ultra.

Basic Specs

Year2011
MakeHarley-Davidson
ModelHarley-Davidson FLTRUSE CVO Road Glide Ultra
CostUS$ 35999. Euro 32270. UK £ 28590. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1802.69 ccm (110.00 cubic inches)
TypeAir-cooled, Twin Cam 110. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
DetailsV2, four-stroke
Max RPM
Compression9.2:1
Bore/Stroke101.6 x 111.3 mm (4.0 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome dual exhaust with 4 in. touring mufflers and touring muffler shields
LubricationPressurized, dry-sump
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate, wet
DrivelinePrimary Drive: Chain, 34/46 ratio. Final Drive: Belt, 32/68 ratio

Performance

Horespower
Torque156.00 Nm (15.9 kgf-m or 115.1 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.95 litres/100 km (16.8 km/l or 39.53 mpg)
Fuel Capacity22.70 litres (6.00 gallons)
Emissions138.0 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3 mm telescopic with blow-by valve
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable
Rear Travel76 mm (3.0 inches)
Seat
Seat Height745 mm (29.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,507 mm (98.7 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight410.5 kg (905.0 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/70-B18
Rear Tire/Tyre180/55-B18
Front BrakesDouble disc. 4-piston fixed caliper
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston fixed caliper
Rear Brake Diameter300 mm (11.8 inches)
Wheels7-spoke, mirror chrome Agitator wheels

Comments

It appears you're interested in specifications for the Harley-Davidson FLTRUSE CVO Road Glide Ultra. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 110. Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder. V2, four-stroke engine with 1802.69 ccm (110.00 cubic inches) of actual displacement before 9.2:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection (ESPFI) allowing this machine to produce its horsepower and 156.00 Nm (15.9 kgf-m or 115.1 ft.lbs) torque. According to our records engine heat of the Harley-Davidson FLTRUSE CVO Road Glide Ultra is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 130/70-B18 and the rear is 180/55-B18 . The entire package is supported by the frame, Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc. 4-piston fixed caliper front brakes and Single disc. 4-piston fixed caliper rear brakes. The Harley-Davidson FLTRUSE CVO Road Glide Ultra was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Limited edition model.
