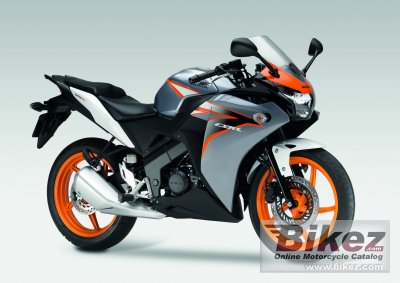

2011 Honda CBR125R Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Honda CBR125R.

Basic Specs

Year2011
MakeHonda
ModelHonda CBR125R
TypeSport
Cost

Engine

Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke58.0 x 47.2 mm (2.3 x 1.9 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI electronic fuel injection
IgnitionFully transistorised with electronic advance
Exhaust
Lubrication
CoolingLiquid

Drivetrain

Gearbox6-speed
Final DriveChain
Clutch
DrivelineO-ring sealed chain

Performance

Horespower13.41 HP (9.8 kW)
Torque10.60 Nm (1.1 kgf-m or 7.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front Suspension31mm telescopic fork, 109mm axle travel
Front Travel
Rear SuspensionMonoshock damper, 120 mm axle travel
Rear Travel
Seat
Seat Height776 mm (30.6 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,070 mm (42.1 inches)
Total Length1,920 mm (75.6 inches)
Total Width675 mm (26.6 inches)
Ground Clearance172 mm (6.8 inches)
Wheelbase1,294 mm (50.9 inches)
Dry Weight127.3 kg (280.6 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/90-M17
Rear Tire/Tyre100/80-M17
Front BrakesSingle disc
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc
Rear Brake Diameter220 mm (8.7 inches)
WheelsU-section 6-spoke cast aluminium

Comments

It appears you're interested in specifications for the Honda CBR125R. This Sport model is powered by a Single cylinder, four-stroke engine with 124.70 ccm (7.61 cubic inches) of actual displacement before 11.0:1 compression. Fueling is metered via Injection. PGM-FI electronic fuel injection  allowing this machine to produce its 13.41 HP (9.8 kW) horsepower and 10.60 Nm (1.1 kgf-m or 7.8 ft.lbs) torque. According to our records engine heat of the Honda CBR125R is moderated by Liquid. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/90-M17 and the rear is 100/80-M17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc front brakes and Single disc rear brakes. The Honda CBR125R was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
