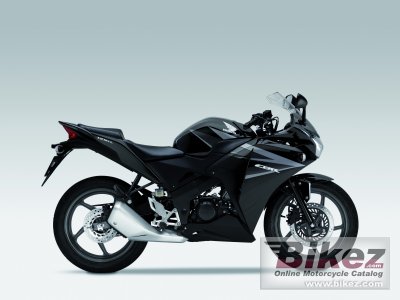

These are the known mechanical and performance specifications for your 2012 Honda CBR125R.
Basic Specs
Engine
Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke58.0 x 47.2 mm (2.3 x 1.9 inches)
Valves/Cylinder2
FuelingInjection. PGM-FI
Ignition
Exhaust
Lubrication
CoolingLiquid
Drivetrain
Gearbox6-speed
Final DriveChain
ClutchMechanical; cable-actuated
DrivelineO-ring sealed chain
Performance
Horespower13.41 HP (9.8 kW)
Torque10.60 Nm (1.1 kgf-m or 7.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity13.00 litres (3.43 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front Suspension31mm telescopic fork,
Front Travel120 mm (4.7 inches)
Rear SuspensionMonoshock damper
Rear Travel126 mm (5.0 inches)
Seat
Seat Height793 mm (31.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height1,089 mm (42.9 inches)
Total Length1,946 mm (76.6 inches)
Total Width704 mm (27.7 inches)
Ground Clearance185 mm (7.3 inches)
Wheelbase1,313 mm (51.7 inches)
Dry Weight136.9 kg (301.8 pounds)
Wet Weight
Wheels & Brakes
Front Tire/Tyre80/90-M17
Rear Tire/Tyre100/80-M17
Front BrakesSingle disc. Disc with dual-piston caliper and sintered metal pads
Front Brake Diameter276 mm (10.9 inches)
Rear BrakesSingle disc. Single-piston caliper and sintered metal pads
Rear Brake Diameter220 mm (8.7 inches)
WheelsU-section 6-spoke cast aluminium
