Suzuki

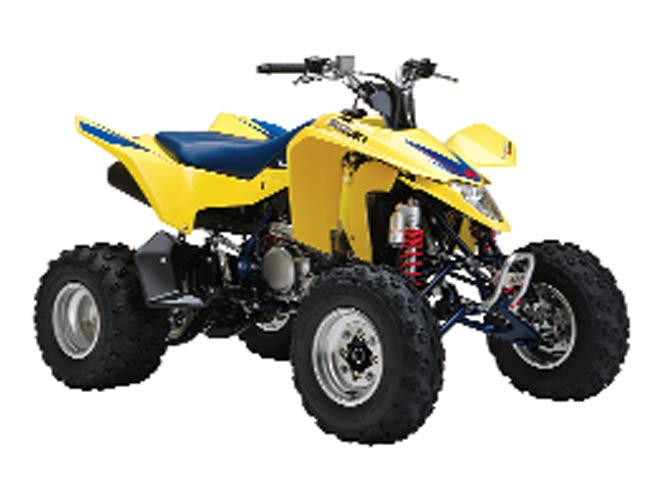

2011 Suzuki QuadSport Z400 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2011 Suzuki QuadSport Z400.

Basic Specs

Year2011
MakeSuzuki
ModelSuzuki QuadSport Z400
TypeATV
CostUS$ 6499. Prices depend on country, taxes, accessories, etc.
Service Manual
Classic Service Manual
Electric Service Manual

Engine

Displacement450.00 ccm (27.46 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic ignition
Exhaust
LubricationDry sump
CoolingLiquid
Spark Plugs

Drivetrain

Gearbox5-speed
Final DriveShaft drive (cardan)
Clutch
DrivelineRK 520SMOZ10S, 96 links
Shaft drive (cardan) Clutch Plates

Performance

Horespower
Torque
Top Speed
K&N Air Filter Slip-on Exhaust

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions
Fuel Bottles & Cans

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,830 mm (72.0 inches)
Total Width1,190 mm (46.9 inches)
Ground Clearance265 mm (10.4 inches)
Wheelbase1,245 mm (49.0 inches)
Dry Weight
Wet Weight193.0 kg (425.5 pounds)
Seats & Covers Lowering Kits Titanium

Wheels & Brakes

Front Tire/Tyre22/7-10
Rear Tire/Tyre20/10-9
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels
Front Brakes Pads Rear Brake Pads Front Tire Rear Tire

Comments

It appears you're interested in specifications for the Suzuki QuadSport Z400. This ATV model is powered by a Single cylinder, four-stroke engine with 450.00 ccm (27.46 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki QuadSport Z400 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Shaft drive (cardan) maintainence. Our best information shows that the front tire size is 22/7-10 and the rear is 20/10-9 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki QuadSport Z400 was launched in 2011, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A red/black limited edition version is available.
