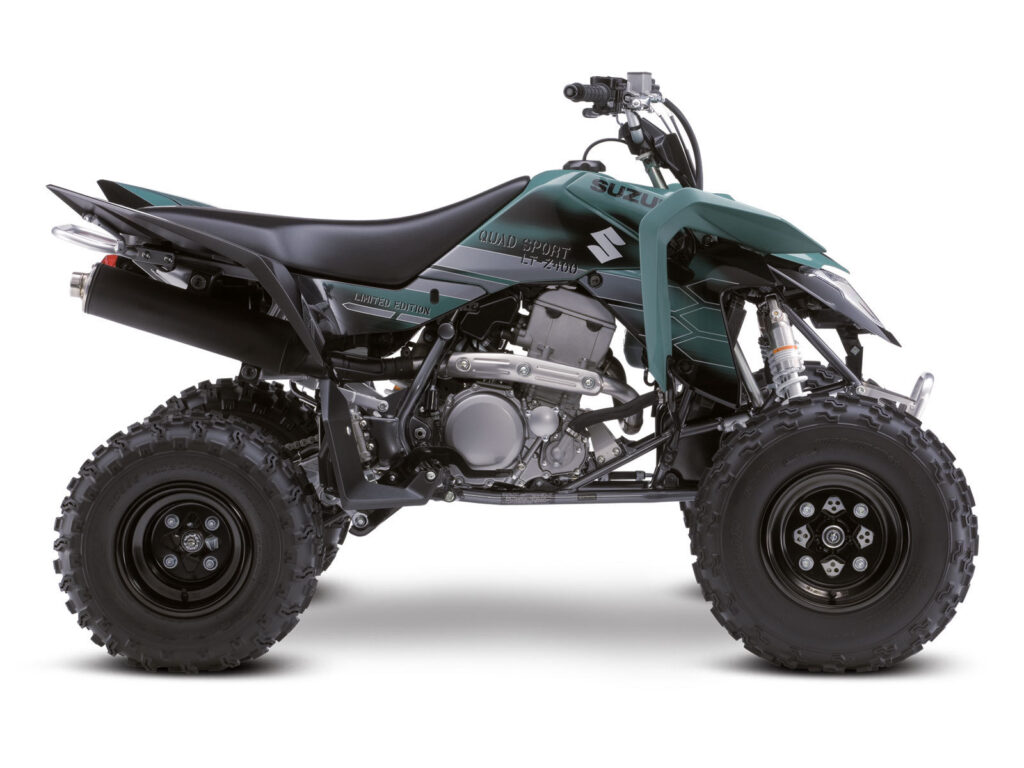

2012 Suzuki QuadSport Z400 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2012 Suzuki QuadSport Z400.

Basic Specs

Year2012
MakeSuzuki
ModelSuzuki QuadSport Z400
TypeATV
CostUS$ 7099. UK £ 5399. Prices depend on country, taxes, accessories, etc.

Engine

Displacement450.00 ccm (27.46 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.3:1
Bore/Stroke90.0 x 62.6 mm (3.5 x 2.5 inches)
Valves/Cylinder
FuelingInjection
IgnitionElectronic
Exhaust
LubricationDry sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
DrivelineRK 520SMOZ10S, 96 links chain

Performance

Horespower
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity9.50 litres (2.51 gallons)
Emissions

Chassis

Frame Type
Rake
Trail
Front SuspensionIndependent, double wishbone, coil spring, oil damped
Front Travel
Rear SuspensionSwingarm type, coil spring, oil damped
Rear Travel
Seat
Seat Height810 mm (31.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,830 mm (72.0 inches)
Total Width1,190 mm (46.9 inches)
Ground Clearance265 mm (10.4 inches)
Wheelbase1,245 mm (49.0 inches)
Dry Weight
Wet Weight193.0 kg (425.5 pounds)

Wheels & Brakes

Front Tire/Tyre22/7-10
Rear Tire/Tyre20/10-9
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Suzuki QuadSport Z400. This ATV model is powered by a Single cylinder, four-stroke engine with 450.00 ccm (27.46 cubic inches) of actual displacement before 11.3:1 compression. Fueling is metered via Injection allowing this machine to produce its horsepower and torque. According to our records engine heat of the Suzuki QuadSport Z400 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 22/7-10 and the rear is 20/10-9 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Suzuki QuadSport Z400 was launched in 2012, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

A black/green limited edition version is available.
