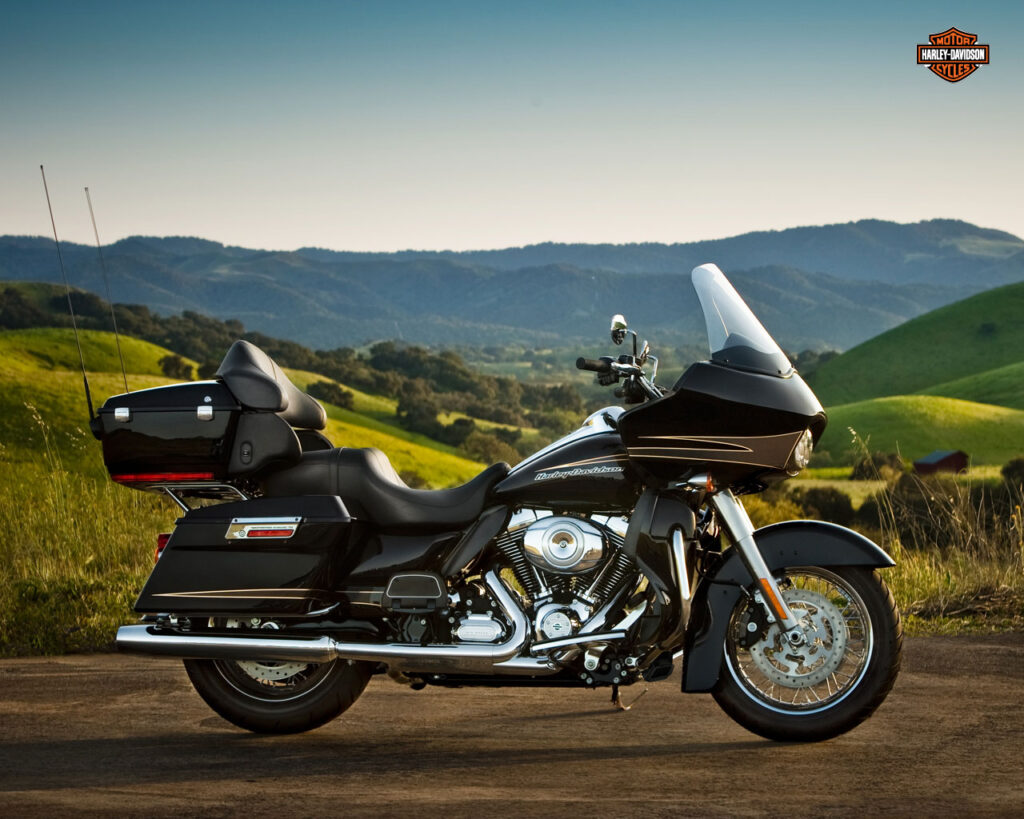

These are the known mechanical and performance specifications for your 2012 Harley-Davidson FLTRU Road Glide Ultra.
Basic Specs


Year2012
MakeHarley-Davidson
ModelHarley-Davidson FLTRU Road Glide Ultra
TypeTouring
CostUS$ 22499. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled Twin Cam 103™ with Integrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder2
FuelingInjection. Electronic Sequential Port Fuel Injection (ESPFI)
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationPressurized, dry-sump with oil cooler
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary drive chain, 34/46 ratio. Final Drive Belt, 32/68 ratio
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame TypeMild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension41.3 mm telescopic, triple circuit damping
Front Travel117 mm (4.6 inches)
Rear SuspensionAir-adjustable shocks. Mild steel; two-piece drawn and welded section; forged junctions; MIG welded swingarm.
Rear Travel76 mm (3.0 inches)
SeatPassenger backrest with wrap-around armrests
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,507 mm (98.7 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight385.6 kg (850.0 pounds)
Wet Weight402.8 kg (888.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-BW17
Rear Tire/Tyre180/65-BW16
Front BrakesDouble disc. 4-piston calipers. ABS.
Front Brake Diameter300 mm (11.8 inches)
Rear BrakesSingle disc. 4-piston caliper. ABS.
Rear Brake Diameter300 mm (11.8 inches)
WheelsBlack, 28-spoke Cast Aluminum
Comments
Sidecar option. Windshield. Injection-molded GTX saddlebags; 2.26 cu. ft. volume.
