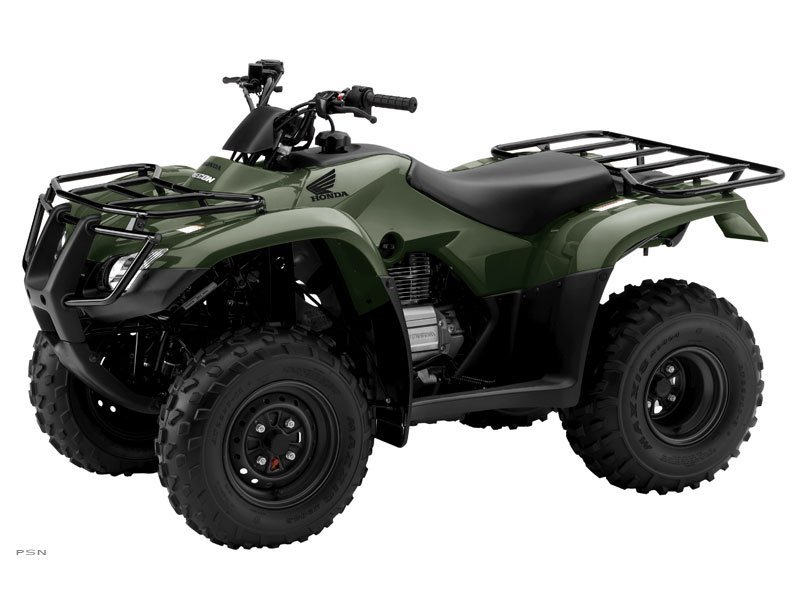

These are the known mechanical and performance specifications for your 2012 Honda FourTrax Recon ES.
Basic Specs
Year2012
MakeHonda
ModelHonda FourTrax Recon ES
TypeATV
CostUS$ 3899. Prices depend on country, taxes, accessories, etc.
Engine
Displacement229.00 ccm (13.97 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression9.5:1
Bore/Stroke68.5 x 62.2 mm (2.7 x 2.4 inches)
Valves/Cylinder
FuelingCarburettor. 22mm carburetor
Ignition
Exhaust
Lubrication
CoolingAir
Drivetrain
Gearbox5-speed
Final DriveShaft drive (cardan)
ClutchAutomatic
DrivelineDirect rear driveshaft. 2WD. ESP 5-speed with reverse
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity9.08 litres (2.40 gallons)
Emissions
Chassis
Frame Type
Rake
Trail
Front SuspensionIndependent double-wishbone
Front Travel130 mm (5.1 inches)
Rear SuspensionSwingarm with single shock
Rear Travel124 mm (4.9 inches)
Seat
Seat Height792 mm (31.2 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length1,905 mm (75.0 inches)
Total Width1,034 mm (40.7 inches)
Ground Clearance152 mm (6.0 inches)
Wheelbase1,130 mm (44.5 inches)
Dry Weight
Wet Weight196.0 kg (432.0 pounds)
Wheels & Brakes
Front Tire/Tyre22/7-11
Rear Tire/Tyre22/10-9
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter
Wheels
Comments
Model ID: TRX250TE
