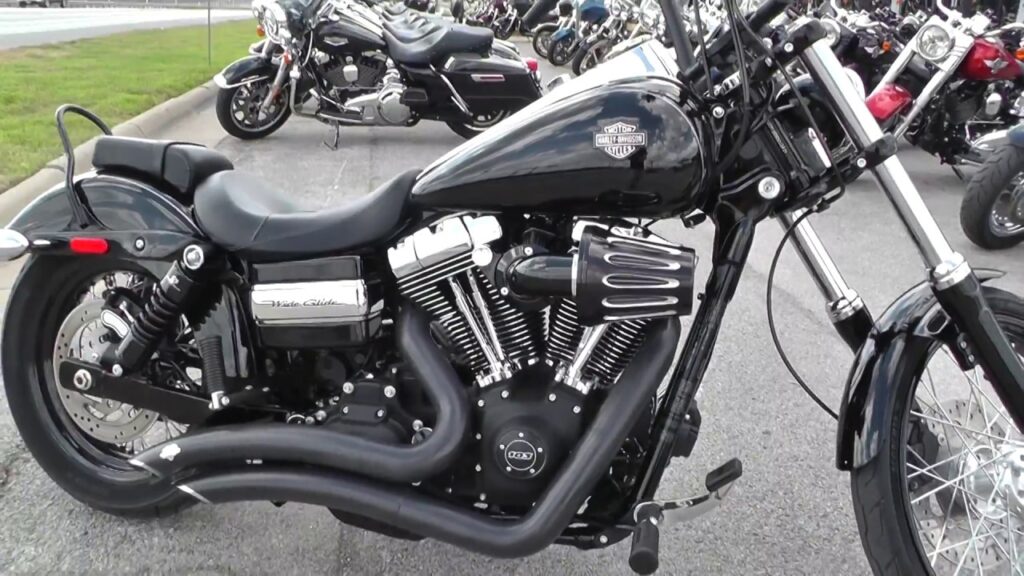

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Dyna Wide Glide.
Basic Specs
Year2013
MakeHarley-Davidson
ModelHarley-Davidson Dyna Wide Glide
TypeCustom / cruiser
CostUS$ 14999. Euro 15795. UK £ 12395. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103™
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers.
Lubrication
CoolingAir
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio
Performance
Horespower
Torque134.24 Nm (13.7 kgf-m or 99.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.79 litres (4.70 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake34.0°
Trail132 mm (5.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,446 mm (96.3 inches)
Total Width
Ground Clearance102 mm (4.0 inches)
Wheelbase1,715 mm (67.5 inches)
Dry Weight294.8 kg (650.0 pounds)
Wet Weight309.8 kg (683.0 pounds)
Wheels & Brakes
Front Tire/Tyre80/90-H21
Rear Tire/Tyre180/60-B17
Front BrakesSingle disc. 4-piston fixed
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free floating
Rear Brake Diameter
WheelsBlack, Laced Steel
