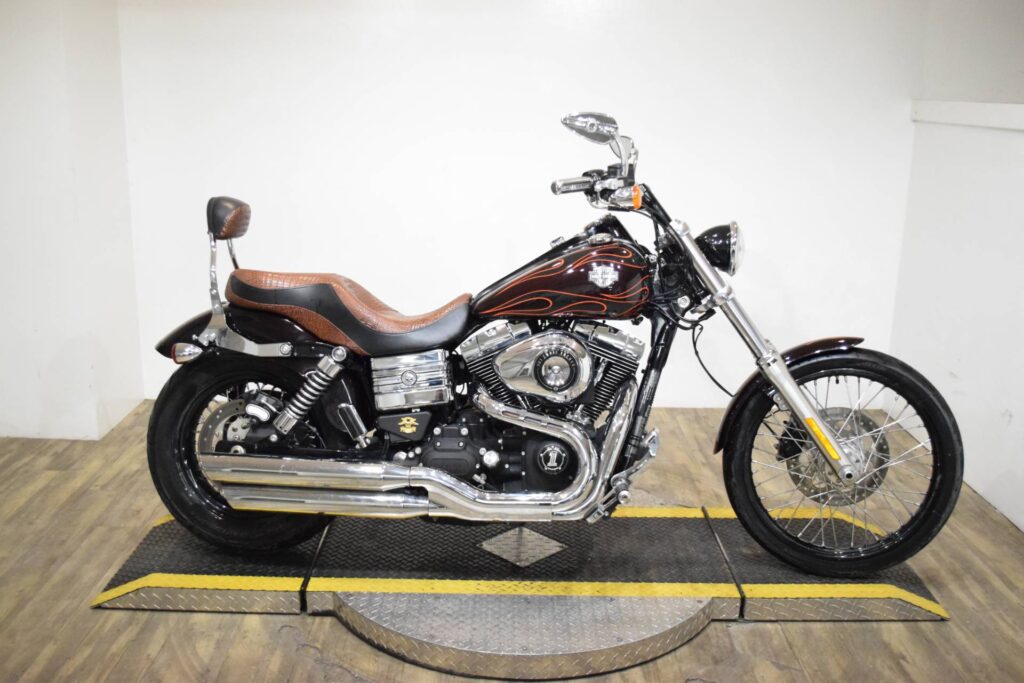

2014 Harley-Davidson Dyna Wide Glide Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Harley-Davidson Dyna Wide Glide.

Basic Specs

Year2014
MakeHarley-Davidson
ModelHarley-Davidson Dyna Wide Glide
CostUS$ 15799. Prices depend on country, taxes, accessories, etc.

Engine

Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled, Twin Cam 103™
DetailsV2, four-stroke
Max RPM
Compression10.0:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers.
Lubrication
CoolingAir

Drivetrain

Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelinePrimary chain, 34/46 ratio

Performance

Horespower
Torque134.24 Nm (13.7 kgf-m or 99.0 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity17.79 litres (4.70 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Chassis

Frame Type
Rake34.0°
Trail132 mm (5.2 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height648 mm (25.5 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,446 mm (96.3 inches)
Total Width
Ground Clearance102 mm (4.0 inches)
Wheelbase1,715 mm (67.5 inches)
Dry Weight294.8 kg (650.0 pounds)
Wet Weight309.8 kg (683.0 pounds)

Wheels & Brakes

Front Tire/Tyre80/90-H21
Rear Tire/Tyre180/60-B17
Front BrakesSingle disc. 4-piston fixed
Front Brake Diameter
Rear BrakesSingle disc. 2-piston torque-free floating
Rear Brake Diameter
WheelsBlack, Laced Steel

Comments

It appears you're interested in specifications for the Harley-Davidson Dyna Wide Glide. This Custom / cruiser model is powered by a Air-cooled, Twin Cam 103™ V2, four-stroke engine with 1687.97 ccm (103.00 cubic inches) of actual displacement before 10.0:1 compression. Fueling is metered via Injection. Electronic Sequential Port Fuel Injection allowing this machine to produce its horsepower and 134.24 Nm (13.7 kgf-m or 99.0 ft.lbs) torque. According to our records engine heat of the Harley-Davidson Dyna Wide Glide is moderated by Air. You'll need to get familiar with the 6-speed transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 80/90-H21 and the rear is 180/60-B17 . The entire package is supported by the frame, . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. 4-piston fixed front brakes and Single disc. 2-piston torque-free floating rear brakes. The Harley-Davidson Dyna Wide Glide was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
