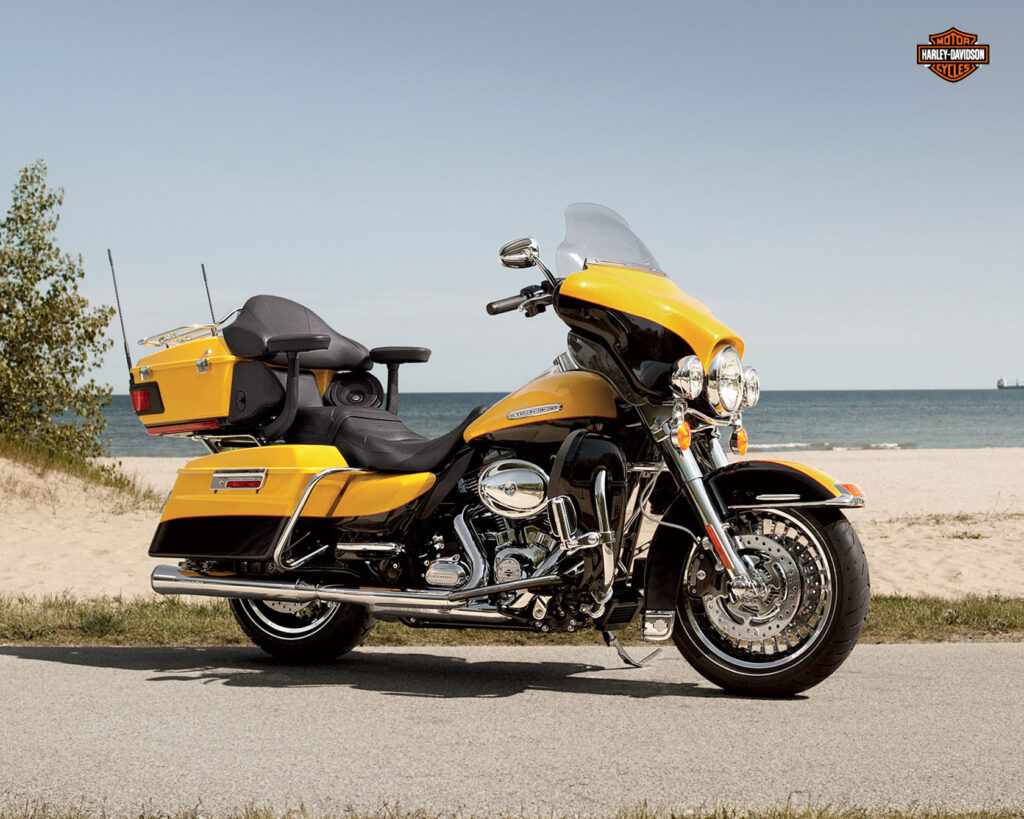

These are the known mechanical and performance specifications for your 2013 Harley-Davidson Electra Glide Ultra Limited.
Basic Specs


Year2013
MakeHarley-Davidson
ModelHarley-Davidson Electra Glide Ultra Limited
TypeTouring
CostUS$ 24199. Euro 27495. UK £ 21195. Prices depend on country, taxes, accessories, etc.
Engine
Displacement1687.97 ccm (103.00 cubic inches)
TypeAir-cooled Twin Cam 103™ with Integrated Oil-Cooler
DetailsV2, four-stroke
Max RPM
Compression9.6:1
Bore/Stroke98.4 x 111.3 mm (3.9 x 4.4 inches)
Valves/Cylinder
FuelingInjection. Electronic Sequential Port Fuel Injection
Ignition
ExhaustChrome, 2-1-2 dual exhaust with tapered mufflers
LubricationDry sump
CoolingOil & air
Drivetrain
Gearbox6-speed
Final DriveBelt
ClutchMulti-plate with diaphragm spring in oil bath
DrivelineChain, 34/46 ratio primary drive
Performance
Horespower
Torque135.60 Nm (13.8 kgf-m or 100.0 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Fuel Capacity22.71 litres (6.00 gallons)
Emissions129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Chassis
Frame Type
Rake26.0°
Trail170 mm (6.7 inches)
Front Suspension
Front Travel
Rear Suspension
Rear Travel
Seat
Seat Height693 mm (27.3 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,504 mm (98.6 inches)
Total Width
Ground Clearance130 mm (5.1 inches)
Wheelbase1,613 mm (63.5 inches)
Dry Weight400.1 kg (882.0 pounds)
Wet Weight413.2 kg (911.0 pounds)
Wheels & Brakes
Front Tire/Tyre130/80-17
Rear Tire/Tyre180/65-16
Front BrakesDouble disc. 4-piston
Front Brake Diameter
Rear BrakesSingle disc. 2-piston
Rear Brake Diameter
WheelsBlack and Chrome, 28-spoke Cast Aluminum
Comments
Windshield.
