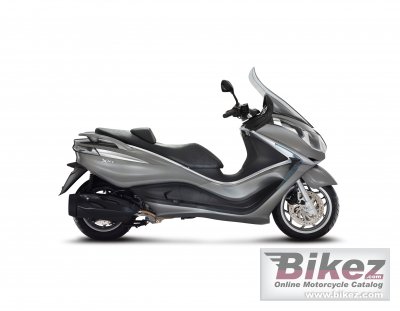

These are the known mechanical and performance specifications for your 2013 Piaggio X10 350 i.e. Executive.
Basic Specs
Engine
Displacement330.00 ccm (20.14 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression11.0:1
Bore/Stroke78.0 x 69.0 mm (3.1 x 2.7 inches)
Valves/Cylinder4
FuelingInjection. EFI
Ignition
Exhaust
LubricationDry sump
Cooling
Drivetrain
GearboxAutomatic
Final DriveBelt
Clutch
DrivelineCVT automatic variator
Performance
Horespower33.00 HP (24.1 kW)
Torque32.20 Nm (3.3 kgf-m or 23.8 ft.lbs)
Top Speed
Fuel Economy & Polution
Fuel Consumption
Fuel Capacity15.50 litres (4.10 gallons)
Emissions
Chassis
Frame TypeDouble-cradle in high strength steel tube
Rake
Trail
Front SuspensionHydraulic telescopic fork with Ø35 mm stanchions
Front Travel
Rear SuspensionDual action hydraulic shock absorbers with 4 spring preload adjustment positions
Rear Travel
Seat
Seat Height760 mm (29.9 inches) If adjustable, lowest setting.
Alt. Seat Height
Total Height
Total Length2,265 mm (89.2 inches)
Total Width800 mm (31.5 inches)
Ground Clearance
Wheelbase1,625 mm (64.0 inches)
Dry Weight
Wet Weight200.0 kg (440.9 pounds)
Wheels & Brakes
Front Tire/Tyre120/70-15
Rear Tire/Tyre150/70-13
Front BrakesSingle disc
Front Brake Diameter280 mm (11.0 inches)
Rear BrakesSingle disc
Rear Brake Diameter240 mm (9.4 inches)
WheelsAluminium alloy
