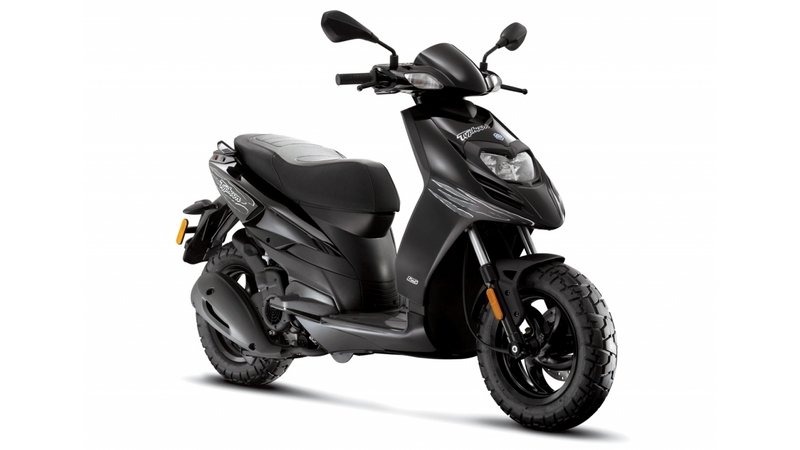

2016 Piaggio Typhoon 50 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2016 Piaggio Typhoon 50.

Basic Specs

Year2016
MakePiaggio
ModelPiaggio Typhoon 50
CostUS$ 1999. Prices depend on country, taxes, accessories, etc.

Engine

Displacement49.00 ccm (2.99 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke39.0 x 41.3 mm (1.5 x 1.6 inches)
Valves/Cylinder4
FuelingCarburettor
Ignition
Exhaust
LubricationWet sump
CoolingAir

Drivetrain

GearboxAutomatic
Final DriveBelt
Clutch
Driveline´Twist ´n go´ automatic CVT

Performance

Horespower4.56 HP (3.3 kW)
Torque3.80 Nm (0.4 kgf-m or 2.8 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity7.00 litres (1.85 gallons)
Emissions

Chassis

Frame TypeSteel single cradle
Rake
Trail
Front SuspensionTelescopic hydraulic fork, stroke
Front Travel76 mm (3.0 inches)
Rear SuspensionSingle hydraulic shock absorber
Rear Travel86 mm (3.4 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length1,940 mm (76.4 inches)
Total Width
Ground Clearance
Wheelbase
Dry Weight
Wet Weight101.0 kg (222.7 pounds)

Wheels & Brakes

Front Tire/Tyre120/80-14
Rear Tire/Tyre130/80-14
Front BrakesSingle disc. Two-piston floating caliper
Front Brake Diameter220 mm (8.7 inches)
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter140 mm (5.5 inches)
WheelsLight alloy

Comments

It appears you're interested in specifications for the Piaggio Typhoon 50. This Scooter model is powered by a Single cylinder, four-stroke engine with 49.00 ccm (2.99 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor allowing this machine to produce its 4.56 HP (3.3 kW) horsepower and 3.80 Nm (0.4 kgf-m or 2.8 ft.lbs) torque. According to our records engine heat of the Piaggio Typhoon 50 is moderated by Air. You'll need to get familiar with the Automatic transmission and pay attention to final drive Belt maintainence. Our best information shows that the front tire size is 120/80-14 and the rear is 130/80-14 . The entire package is supported by the frame, Steel single cradle. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Single disc. Two-piston floating caliper front brakes and Expanding brake (drum brake) rear brakes. The Piaggio Typhoon 50 was launched in 2016, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
