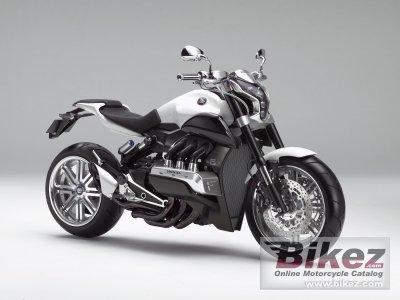

2014 Honda EVO 6 Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda EVO 6.

Basic Specs

Year2014
MakeHonda
ModelHonda EVO 6
Cost

Engine

Displacement1832.00 ccm (111.79 cubic inches)
Type
DetailsSix cylinder boxer, four-stroke
Max RPM
Compression9.8:1
Bore/Stroke74.0 x 71.0 mm (2.9 x 2.8 inches)
Valves/Cylinder2
FuelingInjection. Programmed Fuel Injection (PGM-FI)
IgnitionComputer-controlled digital with three-dimensional mapping
Exhaust
LubricationWet sump
CoolingLiquid

Drivetrain

Gearbox5-speed
Final Drive
Clutch
Driveline

Performance

Horespower150.00 HP (109.5 kW)
Torque
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity
Emissions

Chassis

Frame TypeAluminum
Rake
Trail
Front SuspensionUpside-down cartridge fork
Front Travel140 mm (5.5 inches)
Rear SuspensionMonoshock
Rear Travel120 mm (4.7 inches)
Seat
Seat Height
Alt. Seat Height
Total Height
Total Length
Total Width
Ground Clearance
Wheelbase1,690 mm (66.5 inches)
Dry Weight
Wet Weight

Wheels & Brakes

Front Tire/Tyre130/70-R18
Rear Tire/Tyre180/60-R16
Front BrakesDouble disc
Front Brake Diameter
Rear BrakesSingle disc
Rear Brake Diameter
Wheels

Comments

It appears you're interested in specifications for the Honda EVO 6. This Prototype / concept model model is powered by a Six cylinder boxer, four-stroke engine with 1832.00 ccm (111.79 cubic inches) of actual displacement before 9.8:1 compression. Fueling is metered via Injection. Programmed Fuel Injection (PGM-FI) allowing this machine to produce its 150.00 HP (109.5 kW) horsepower and torque. According to our records engine heat of the Honda EVO 6 is moderated by Liquid. You'll need to get familiar with the 5-speed transmission and pay attention to final drive maintainence. Our best information shows that the front tire size is 130/70-R18 and the rear is 180/60-R16 . The entire package is supported by the frame, Aluminum . We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Double disc front brakes and Single disc rear brakes. The Honda EVO 6 was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.
