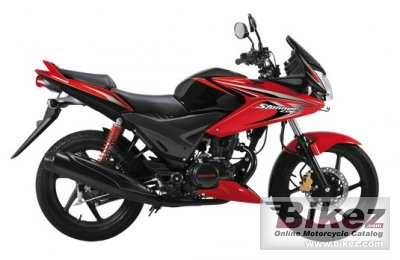

2014 Honda Stunner Specs

motorcycle specs

These are the known mechanical and performance specifications for your 2014 Honda Stunner.

Basic Specs

Year2014
MakeHonda
ModelHonda Stunner
TypeSport
Cost

Engine

Displacement124.70 ccm (7.61 cubic inches)
Type
DetailsSingle cylinder, four-stroke
Max RPM
Compression
Bore/Stroke
Valves/Cylinder
FuelingCarburettor. CV type
Ignition
Exhaust
Lubrication
CoolingAir

Drivetrain

Gearbox5-speed
Final DriveChain
Clutch
Driveline

Performance

Horespower11.60 HP (8.5 kW)
Torque11.20 Nm (1.1 kgf-m or 8.3 ft.lbs)
Top Speed

Fuel Economy & Polution

Fuel Consumption
Fuel Capacity10.00 litres (2.64 gallons)
Emissions

Chassis

Frame TypeAdvanced Design Diamond Frame
Rake
Trail
Front SuspensionTelescopic fork
Front Travel
Rear SuspensionHydraulic, 3 step adjustable
Rear Travel
Seat
Seat Height
Alt. Seat Height
Total Height113 mm (4.4 inches)
Total Length2,012 mm (79.2 inches)
Total Width734 mm (28.9 inches)
Ground Clearance173 mm (6.8 inches)
Wheelbase1,271 mm (50.0 inches)
Dry Weight110.0 kg (242.5 pounds)
Wet Weight

Wheels & Brakes

Front Tire/Tyre80/100-17
Rear Tire/Tyre100/90-17
Front BrakesExpanding brake (drum brake)
Front Brake Diameter
Rear BrakesExpanding brake (drum brake)
Rear Brake Diameter130 mm (5.1 inches)
WheelsAlloy wheels

Comments

It appears you're interested in specifications for the Honda Stunner. This Sport model is powered by a Single cylinder, four-stroke engine with 124.70 ccm (7.61 cubic inches) of actual displacement before compression. Fueling is metered via Carburettor. CV type allowing this machine to produce its 11.60 HP (8.5 kW) horsepower and 11.20 Nm (1.1 kgf-m or 8.3 ft.lbs) torque. According to our records engine heat of the Honda Stunner is moderated by Air. You'll need to get familiar with the 5-speed transmission and pay attention to final drive Chain maintainence. Our best information shows that the front tire size is 80/100-17 and the rear is 100/90-17 . The entire package is supported by the frame, Advanced Design Diamond Frame. We know you like to go fast or cruise all day, but when you need to stop, you'll be dependant on Expanding brake (drum brake) front brakes and Expanding brake (drum brake) rear brakes. The Honda Stunner was launched in 2014, and we're happy to know (or assume) you've got one in your garage. To help you keep your ride in tip-top shape, consider purchasing an owner or service manual.

Sold in India.
